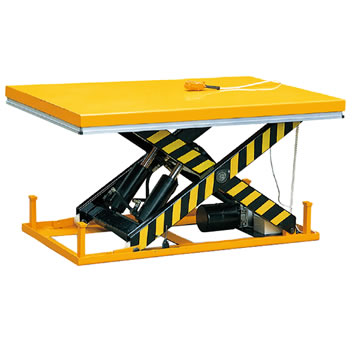

Lift Table     HW series

* Heavy Duty Design
* HW series lift tables meet EN norm and ANSI/ASME safety standards.
* These models can be used in above-floor or in-floor pit applications.

Standard Safety Features
* Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
* Low-tention (24V) control box with up-down buttons.
* Internal power pack equipped with relief valve against overloading and compensated flow valve for
controlled lowering speed.
* Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
* Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
* Self lubricating bushings on pivot points.
* Removable lifting eye to handling and lift table installation.
* High quality AC power packs are made in Europe.
