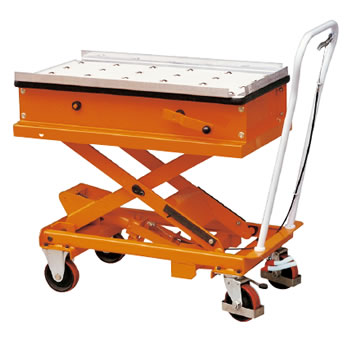

Transfer Lift Table
Product Model :
|
Transfer Lift Table BT / BE series
* More easier for loading and unloading operations by means of ball transfer unit. As the
steel balls are raised, the goods on table are very easy to move into or move away.
* As the steel balls are lowered, the goods stay on table firmly.
* Electric version: 700W DC power pack.
|
Model |
|
BT20 |
BT45 |
BT70 |
BT100 |
BE45 |
BE70 |
BE100 |
BE45L |
|
Type |
Manual |
Electric |
|||||||
|
Capacity |
(kg) |
200 |
450 |
700 |
1000 |
450 |
700 |
1000 |
450 |
|

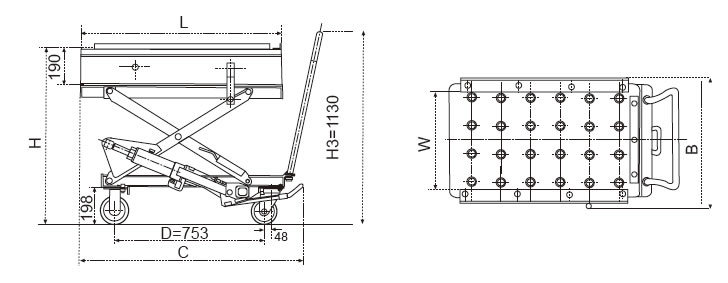

Table Size |
LxW (mm) |
820x500 |
550x1006 |
550x1006 |
550x1006 |
550x1006 |
550x1006 |
550x1006 |
672x1516 |
|
Table Height |
Hmin/Hmax (mm) |
520/1000 |
632/1185 |
632/1150 |
647/1140 |
640/1140 |
670/1140 |
670/1140 |
6191329 |
|
Handle Height |
H3 (mm) |
1100 |
1130 |
1130 |
1130 |
1130 |
1130 |
1130 |
1130 |
|
Wheel Diameter |
(mm) |
Φ125 |
Φ150 |
Φ150 |
Φ150 |
Φ150 |
Φ150 |
Φ150 |
Φ150 |
|
Overall Size |
BxC (mm) |
560x1010 |
580x1185 |
580x1260 |
580x1260 |
580x1185 |
580x1260 |
580x1260 |
672x1780 |
|
Stroke to Max.Height |
30 |
65 |
75 |
75 |
— |
— |
— |
— |
|
|
Lifting Speed |
(s) |
— |
— |
— |
— |
15 |
15 |
15 |
15 |
|
Net Weight |
(kg) |
105 |
153 |
155 |
172 |
183 |
169 |
204 |
273 |
