Hand Stacker
Product Model :
  • PA0515
  • PA1015
  • PA1025
  • PA1515
  • PA2015

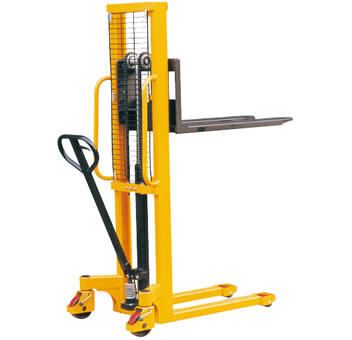

Hand Stacker  PA series

* Latest technology of hydraulic pump with less effort force. Top quality German seal kit.
* Heavy duty 1 piece “C” section forks for greatest strength.
* Option adjustable forks for wider applications.
* PZ series is economic range but reliable.
* Conforms to EN1757-1.

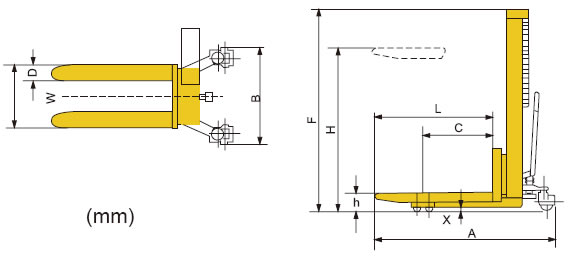

Model

PA0515

PA1015

PA1025

PA1515

PA2015

Capacity

(kg)

500

1000

1000

1500

2000

Load Centre

C (mm)

585

585

585

585

585

Max. Fork Height

H (mm)

1500

1500

2500

1500

1500

Min. Fork Height

h (mm)

88

88

88

88

88

Fork Length

L (mm)

1150

1150

1150

1150

1150

Fork Width

D (mm)

160

160

160

160

160

Overall Fork Width

W (mm)

540

540

540

540

540

Lifting Height Per Stroke

(mm)

20

12.5

12.5

12.5

10

Ground Clearance

X (mm)

24

24

24

24

24

Min. turning Radius(outside)

(mm)

1086

1086

1086

1100

1100

Front Load Roller

(mm)

Φ80×70

Φ80×70

Φ80×70

Φ80×70

Φ80×70

Steering Wheel

(mm)

Φ150×40

Φ150×50

Φ150×50

Φ180×50

Φ180×50

Overall Length

A (mm)

1604

1604

1646

1665

1695

Overall Width

B (mm)

794

760

760

720

720

Overall Height

F (mm)

2010

2010

1960

2010

2010

Net Weight

(kg)

210

220

330

250

280

Option adjustable fork available:346-710mm fork width on PA series
Note:Materials and specification are subject to change without notice.
