Winch Stacker
Product Model :
  • WS25
  • WS50
  • WS100

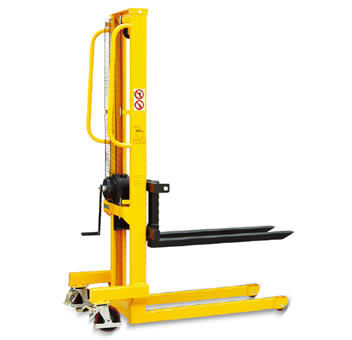

Winch Stacker     WS series

* Compact and service free design.
* Unique design of winch for easier and safe lifting.
* Heavy duty “C” section mast.

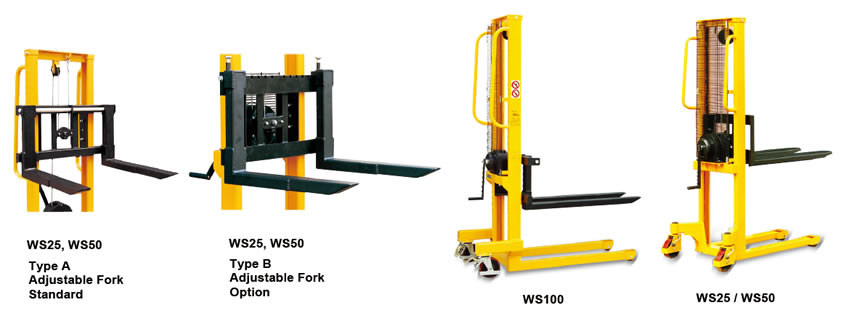

* Adjustable fork width from 160mm to 690mm (WS25,WS50).
* Two parking brakes on steering wheels.
* Conforms to EN1757-1:2001.

Model

WS25

WS50

WS100

Capacity

(kg)

250

500

1000

Load Centre

(mm)

400

500

575

Max. Fork Height

(mm)

1560

1560

1500

Lowered Fork Height

(mm)

90

90

88

Fork Adjustable Width

(mm)

150-690

160-690

540 Fixed

Fork Length

(mm)

800

1000

1150

Fork Width

(mm)

60

70

160

Effort Force to Rated Load

(N)

100

120

100

Lifting Height per Stroke

(mm)

40

22

9.5

Ground Clearance

(mm)

18

18

24

Min. Turning Radius (outside)

(mm)

1075

1075

1250

Front Load Roller

(mm)

Φ80×47

Φ80×47

Φ80×94

Steering Wheel

(mm)

Φ150×40

Φ150×40

Φ150×50

Overall Size(L×W×H)

(mm)

1325×725×2030

1325×725×2030

1600×725×1930

Net Weight

(kg)

140

146

182
