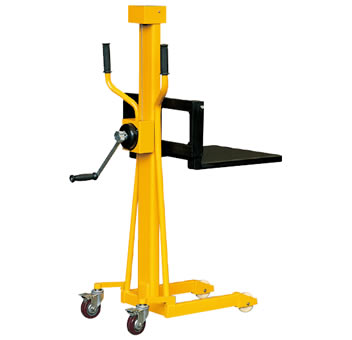

Mini Winch Stacker
Product Model :
  • LS80
  • LS150

Mini Winch Stacker       LS series

* Robust, lightweight, steel construction.
* Manoeuvrable, extremely easy to use.
* Cable winch lifting system with fully cable housing.

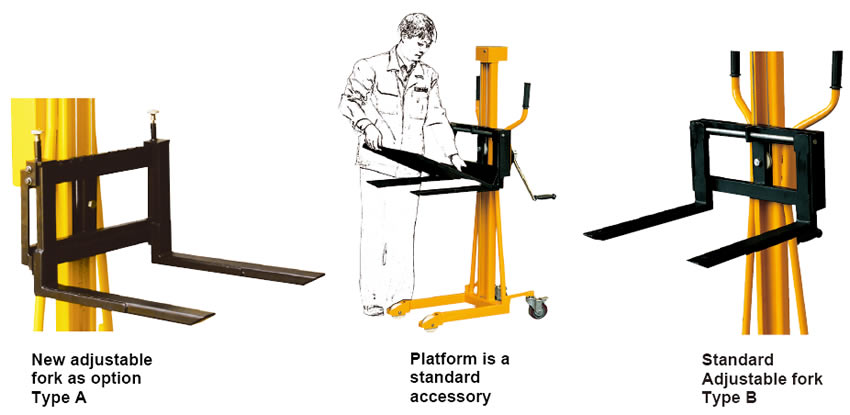

* Adjustable fork from 132mm to 520mm.
* Platform is a standard accessory.

Model

LS80

LS150

Capacity

(kg)

80

150

Load Centre

(mm)

250

250

Lifting Height

(mm)

1100

1100

Straddle Leg Height

(mm)

100

100

Min. Fork Height

(mm)

70

70

Fork Length

(mm)

500

500

Individual Fork Width

(mm)

50

50

Platform Size

(mm)

500×530×90

500×530×90

Over Adjustable Fork Width

(mm)

132-520

132-520

Effort Force with Load

(N)

82

106

Load Wheel

(mm)

Φ100×30

Φ100×30

Steering Wheel

(mm)

Φ100×30

Φ100×30

Overall Dimensions

(mm)

865×550×1470

830×580×1475

Net Weight

(kg)

52

62

Important: Forks MUST be in Max. fork width position when fit platform on two forks.
