Fork Type Stacker
Product Model :
|

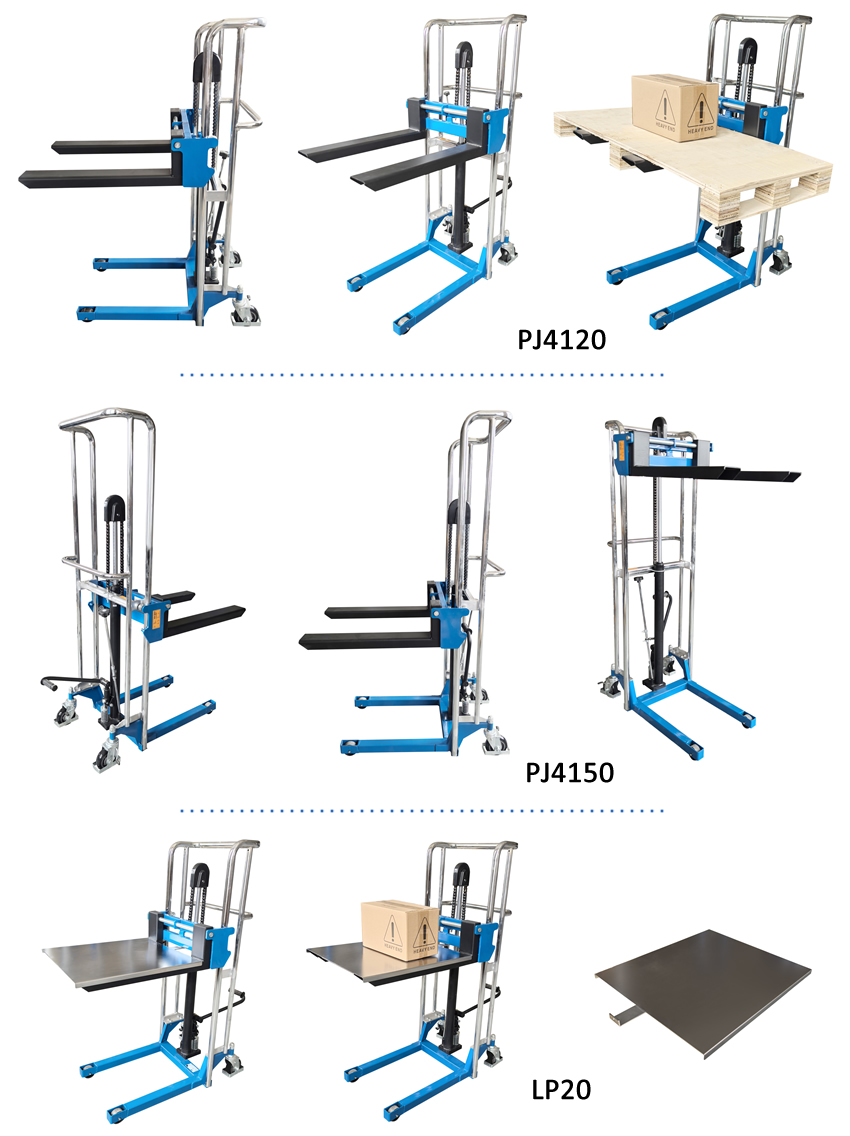

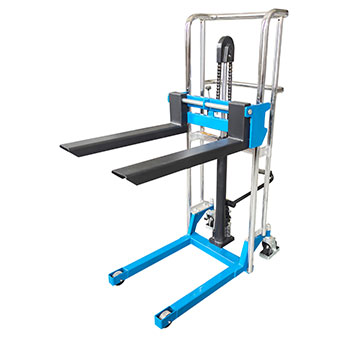

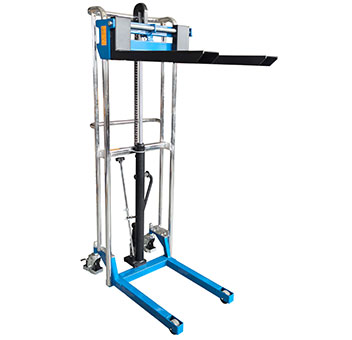

Fork Type Stacker PF . A / PJ . A series
* Low profile forks can lift pallet easily.
* Ladder as option.
* No-marking castor as standard.
* Conforms to EN 1757-1 : 2001.
|
Model (Fixed Fork) |
|
PF2085A |
PF2120A |
PF4085A |
PF4120A |
PF4150A |
|
Model (Adjustable Fork) |
|
PJ2085A |
PJ2120A |
PJ4085A |
PJ4120A |
PJ4150A |
|
Capacity |
(kg) |
200 |
200 |
400 |
400 |
400 |
|
Max. Fork Height |
(mm) |
850 |
1200 |
850 |
1200 |
1500 |
|
Min. Fork Height |
(mm) |
85 |
85 |
85 |
85 |
85 |
|
Fork Length |
(mm) |
600 |
600 |
650 |
650 |
650 |
|
Fixed Fork Width(PF series) |
(mm) |
500 |
500 |
550 |
550 |
550 |
|
Adjustable Fork Width(PJ series) |
(mm) |
215-500 |
215-500 |
235-500 |
235-500 |
235-500 |
|
Load Roller |
(mm) |
Φ75 |
Φ75 |
Φ75 |
Φ75 |
Φ75 |
|
Steering Wheel |
(mm) |
Φ125 |
Φ125 |
Φ125 |
Φ125 |
Φ125 |
|
Pump Strokes to Max.Height |
|
19 |
26 |
35 |
50 |
63 |
|
Overall Height |
(mm) |
1080 |
1435 |
1060 |
1410 |
1710 |
|
Overall Width |
(mm) |
560 |
560 |
590 |
590 |
590 |
|
Overall Length |
(mm) |
1000 |
960 |
1040 |
1040 |
1040 |
|
Net Weight |
PF series (kg) |
55 |
62 |
70 |
76 |
82 |
|
PJ series (kg) |
58 |
65 |
75 |
81 |
85 |
|
|

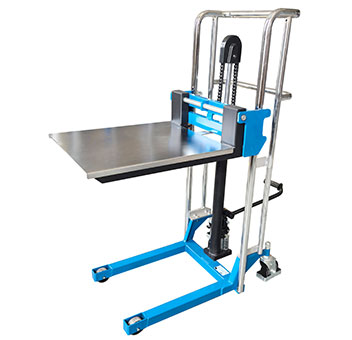

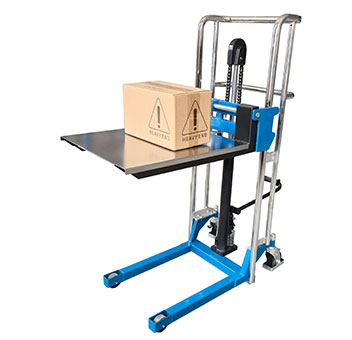

Option Platform |
|
LP10 |
LP10 |
LP20 |
LP20 |
LP20 |
