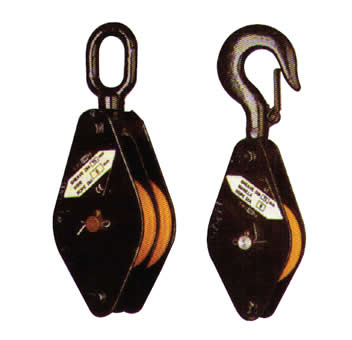

Wire Rope Snatch Blocks
Product Model :
|
Wire Rope Snatch Blocks PBC series
|
Type |
S.W.L |
Sheave Dia |

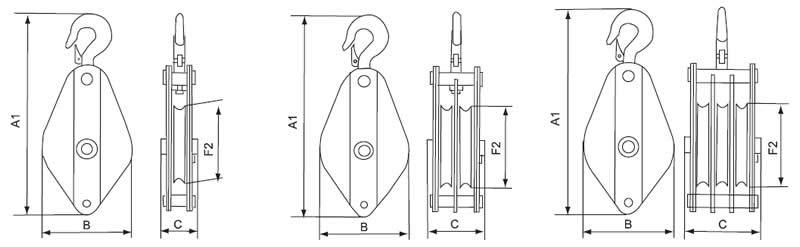

Dimensions (mm) |
Wire Rope |
|||
|
Hook A1 |
Eye A2 |
B |
C |
||||
|
PBC63x1 |
0.25 |
63 |
208.4 |
202.4 |
68 |
40 |
5 |
|
PBC75x1 |
0.25 |
75 |
222.4 |
216.4 |
80 |
40 |
6 |
|
PBC100x1 |
0.5 |
100 |
300.5 |
283.5 |
108 |
48.5 |
8 |
|
PBC125x1 |
1 |
125 |
346 |
332.5 |
140 |
53.5 |
10 |
|
PBC150x1 |
1 |
150 |
392 |
378.5 |
168 |
60 |
12 |
|
PBC180x1 |
1.5 |
180 |
456.7 |
450 |
204 |
81 |
15 |
|
PBC200x1 |
2 |
200 |
505.8 |
488 |
220 |
91.5 |
16 |
|
PBC250x1 |
3 |
250 |
642.7 |
627 |
268 |
114 |
20 |
|
PBC63x2 |
0.25 |
63 |
208.4 |
202.4 |
68 |
63 |
5 |
|
PBC75x2 |
0.25 |
75 |
222.4 |
216.4 |
80 |
76 |
6 |
|
PBC100x2 |
0.75 |
100 |
315.4 |
285 |
108 |
86 |
8 |
|
PBC125x2 |
1 |
125 |
346 |
332.5 |
140 |
95 |
10 |
|
PBC150x2 |
1.5 |
150 |
412.7 |
400 |
168 |
125 |
12 |
|
PBC180x2 |
2 |
180 |
469.8 |
452 |
204 |
14 |
15 |
|
PBC200x2 |
3 |
200 |
500.8 |
504 |
220 |
|
16 |
|
PBC250x2 |
4 |
250 |
653 |
650 |
268 |
183 |
20 |
|
PBC63x3 |
0.25 |
63 |
208.4 |
202.4 |
38 |
87 |
5 |
|
PBC75x3 |
0.25 |
75 |
222.4 |
216.4 |
80 |
87 |
6 |
|
PBC100x3 |
0.75 |
100 |
315.9 |
285 |
108 |
104 |
8 |
|
PBC125x3 |
1 |
125 |
346 |
332.5 |
140 |
119 |
10 |
|
PBC150x3 |
1.5 |
150 |
412.7 |
400 |
168 |
130 |
12 |
|
PBC180x3 |
2 |
180 |
469.8 |
452 |
204 |
169 |
15 |
|
PBC200x3 |
4 |
200 |
545.2 |
529.5 |
220 |
196 |
16 |
|
PBC250x3 |
5 |
250 |
688.5 |
671 |
268 |
253 |
20 |
