Platform Stacker
Product Model :
  • NF2094
  • NF4012

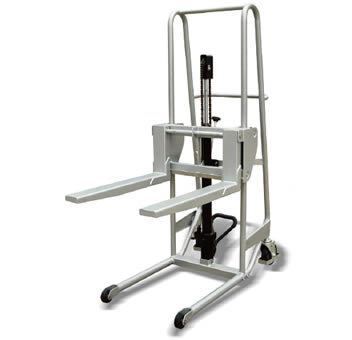

Platform Stacker  NF series

Quick lifting, highly manoeuvarable!

* A range of highly manoeuvarable, Lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
* Heavy duty design.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc…
* Quick lift pump by a pedal provides high efficiency.
* No-marking castor as standard.
* Conforms to EN1757.

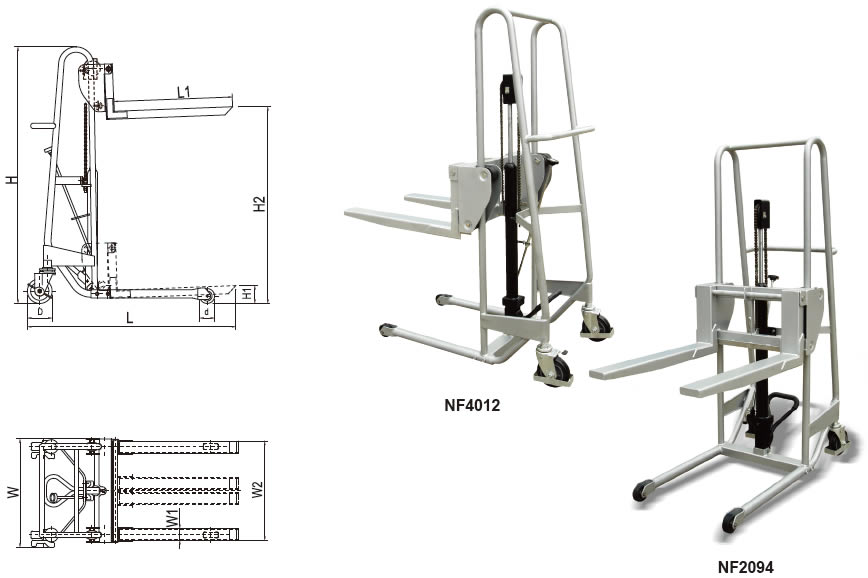

Model (Adjustable Fork)

NF2094

NF4012

Capacity

(kg)

200

400

Max. Fork Height

H2 (mm)

940

1210

Min. Fork Height

H1 (mm)

90

90

Fork Length

L1 (mm)

600

700

Single Fork Width

W2 (mm)

60

90

Adjustable Fork Width

W1 (mm)

130-514

190-572

Total Width

W (mm)

560

620

Total Length

L (mm)

1097

1270

Total Height

H (mm)

1290

1610

Steering Wheel

D (mm)

Φ125

Φ125

Load Roller

d (mm)

Φ75

Φ75

Pump Stokes to Max. Height

Full Load

29

63

NO Load

29

20

Net Weight

(kg)

55

82

Quick Lift available for NS2094 on inquiry.
