Ratchet Load Binder
Product Model :
  • LB22
  • LB38
  • LB50

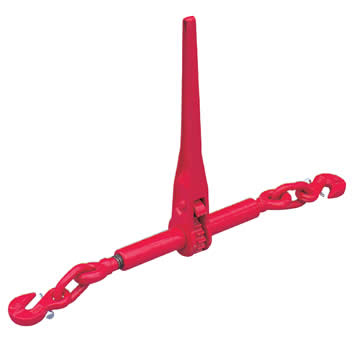

Ratchet Load Binder    LB series

* Universal tool to restrain and secure loads and freight
* Manual operation of the binder lever extends or retracts the threaded spindles
* Tension is upheld by the self-locking trapezoid thredas
* Fitted with parallel hooks for direct attachment to chains or with clevis for use with exising fastening devices
* With locking devices which prevent unintention loosening of the threaded spindles
* Equiped safety pin on the hook to special order

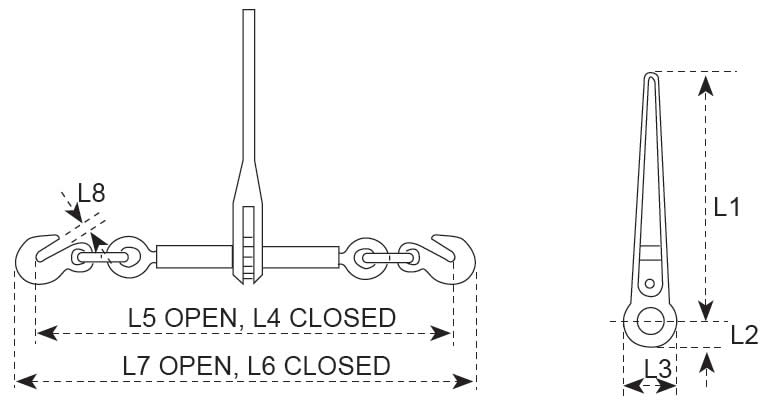

Model

Capacity

Design

Chain size

B1

B2

E

L

Weight

 (kg)

 min (mm)

max (mm)

(mm)

 min (mm)

max (mm)

(mm)

(mm)

(kg)

LB22

2150

Parallel hooks

8

10

253

580

780

353

4.7

LB38

3750

Parallel hooks

10

13

253

600

800

353

5.5

LB50

5000

Clevis

253

330

530

25

353

3.8
