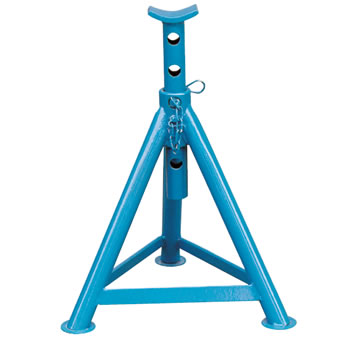

Axle Stand SN series
Product Model :
  • SN15A
  • SN15B
  • SN30
  • SN50
  • SN80A
  • SN80B
  • SN160A
  • SN160B
  • SN

Axle Stand   SN series

For all professional applications!
* Capacity from 1500kg to 16000kg.
* Heavy duty structure, high stability and long life.
* According to safety regulations, every vehicle must be supported by stands.

Model

SN15A

SN15B

SN30

SN50

SN80A

SN80B

SN160A

SN160B

SN160C

Capacity

(kg)

1500

1500

3000

5000

8000

8000

16000

16000

16000

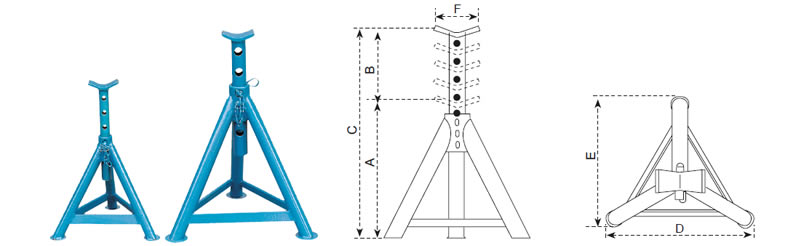

Min. Height

A (mm)

260

420

320

375

380

580

295

435

675

Max. Height

B (mm)

140

240

210

200

220

385

140

280

420

Fully Extended

C (mm)

400

660

530

575

600

965

435

715

1095

Pitch

(mm)

38

65

42

50

55

75

70

70

70

Top

F (mm)

70

70

70

70

125

125

130

130

130

Distance of Legs

D (mm)

270

415

335

385

400

596

321

480

705

Distance of Legs

E (mm)

240

355

250

325

350

520

272

420

605

Net weight

(kg)

2

3.5

4.5

5

5.4

9

13.2

20

30
