Trailer Stabilizer Jacks
Product Model :
  • TJ50
  • TJ50A
  • TJ50B
  • TJ50C
  • TJ50D

Trailer Stabilizer Jacks     TJ series

A “must” for safely loading and unloading trailers!

Meet OSHA Specification with our wide variety of Trailer Stabilizer Jacks OSHA 1910.
178(k)(3) states “Fixed jacks may be necessary to support a semi-trailer and prevent upending
during the loading or unloading when the trailer is not coupled to a tractor”.

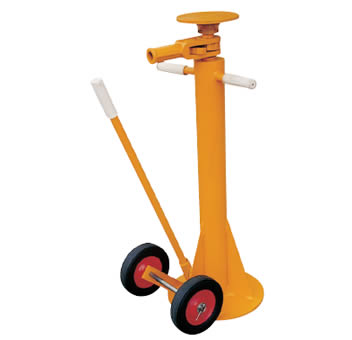

A. Spin-Top Jacks
* ACME thread screw design.
* Reflective collar and safety yellow painting.

Model

TJ50

TJ50A

TJ50B

TJ50C

TJ50D

Service Range

(in.)

391/2-51

39-51

39-51

45-57

45-57

Static Capacity

(lbs/tonne)

100000/45

100000/45

100000/45

80000/36

100000/45

Lifting Capacity

(lbs/tonne)

40000/18

40000/18

50000/22.7

40000/18

40000/18

Cap Size

8"diameter

7.5"diameter

8"diameter

8"diameter

8"diameter

Base Plate

14"triangular

16"triangular

16"triangular

16"triangular

16"triangular

Wheel Dia

10"semi-pneumatic

10"solid rubber

10"solid rubber

10"solid rubber

10"solid rubber

Net Weight

(lbs/kg)

125/57

110/50

125/57

115/52

130/59
