Trailer Stabilizer Jacks
Product Model :
  • TJ40
  • TJ40A

Trailer Stabilizer Jacks     TJ series

A “must” for safely loading and unloading trailers!

Meet OSHA Specification with our wide variety of Trailer Stabilizer Jacks OSHA 1910.
178(k)(3) states “Fixed jacks may be necessary to support a semi-trailer and prevent upending
during the loading or unloading when the trailer is not coupled to a tractor”.

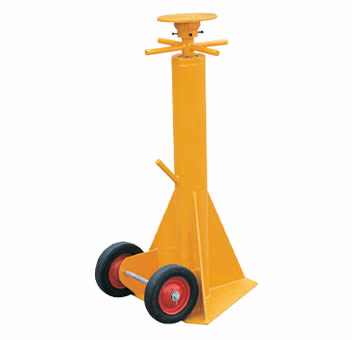

A. Spin-Top Jacks
* ACME thread screw design.
* Reflective collar and safety yellow painting.



Model

TJ40

TJ40A

Service Range

(in.)

391/2-51

391/2-51

Static Capacity

(lbs/tonne)

100000/45

100000/45

Lifting Capacity

(lbs/tonne)

40000/18

50000/22.7

Cap Size

7.5"diameter

7.5"diameter

Base Plate

15"triangular

15"triangular

Wheel Dia

10"solid rubber

10"solid rubber

Net Weight

(lbs/kg)

110/50

125/57
