Lever Hoist HSH-B
Product Model :
|
Lever Hoist HSH-B
* Tensioning and lashing in any direction.
* Top & bottom hooks are fitted with safety latches as standard.
* The hook does not fracture but will slowly yield.
* Short 360° rotation handle and little handle effort.
* Rugged steel body construction.
* Load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain.
* Impact resistance.
* High grade alloy load chain.
* Widely used in all industrial field.
* Conform to CE safety standard.
|
Model |
Capacity |
Standard lift |
Test load |
Effort required |
No. of falls |
Net weight |
|
(kg) |
(m) |
(N) |
(N) |
(kg) |
||
|
HSH-075B |
750 |
1.5 |
9375 |
150 |
1 |
6.8 |
|
HSH-100B |
1000 |
1.5 |
12500 |
160 |
1 |
7.1 |
|
HSH-150B |
1500 |
1.5 |
18750 |
230 |
1 |
12 |
|
HSH-200B |
2000 |
1.5 |
25000 |
250 |
1 |
20 |
|
HSH-300B |
3000 |
1.5 |
37500 |
350 |
1 |
20.4 |
|
HSH-600B |
6000 |
1.5 |
75000 |
370 |
2 |
30 |
|

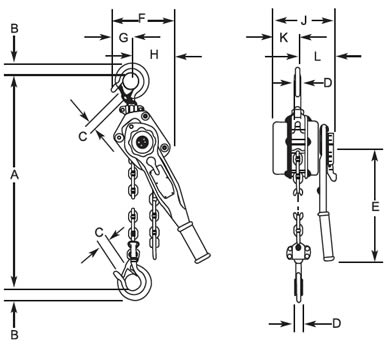

Dimensions(mm) |
||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
|
321 |
23.8 |
28.5 |
17.5 |
279 |
111 |
56 |
56 |
151 |
60 |
90 |
|
328 |
25.6 |
29.5 |
18.6 |
279 |
111 |
58 |
56 |
151 |
60 |
90 |
|
376 |
28.6 |
31.8 |
20.6 |
413 |
121 |
60 |
60 |
175 |
76 |
100 |
|
385 |
32.5 |
33.5 |
22.8 |
413 |
121 |
65 |
60 |
175 |
76 |
100 |
|
475 |
42.9 |
39.7 |
31.8 |
413 |
191 |
86 |
106 |
200 |
86 |
116 |
|
495 |
50.8 |
43 |
34.5 |
413 |
191 |
94 |
106 |
200 |
86 |
116 |
