Manual Chain Hoist HSZ-B
Product Model :
  • HSZ-05B
  • HSZ-10B
  • HSZ-20/1B
  • HSZ-20/2B
  • HSZ-30/1B
  • HSZ-

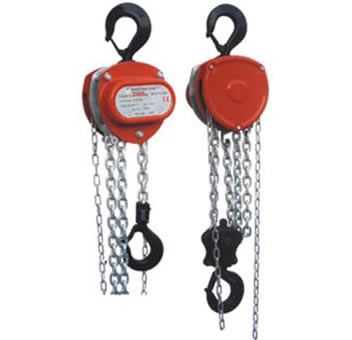

Manual Chain Hoist  HSZ-B

* Robust all-steel construction.
* Top and bottom hooks are fitted with safely latches as standard.
* With brake mechanism.
* Double ratchet pawls.
* Hand chain cover and slots accurately guide the hand chain.
* Stripper ensure accurate alignment of the load chain over the load sheave.
* Powder metal bushing.
* Conform to CE safety standard.



Model

HSZ-05B

HSZ-10B

HSZ-20/1B

HSZ-20/2B

HSZ-30/1B

HSZ-30/2B

HSZ-50B

HSZ-100B

Capacity

(kg)

500

1000

2000

2000

3000

3000

5000

10000

Standard lift

(m)

3

3

3

3

3

3

3

3

Running test load

(Kn)

7.3

14.7

29.4

29.4

44

44

73.5

147

Effort required to lift rated load

(N)

157

314

323

314

333

323

412

441

Strands of load chain

1

1

1

2

1

2

2

4

Load chain diameter

(mm)

6

6

8

6

10

8

10

10

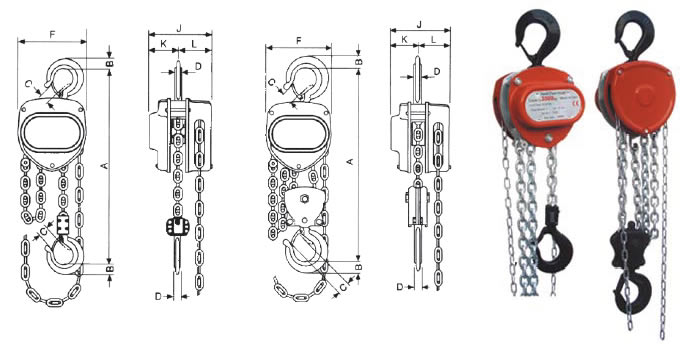

Dimensions

Amin. (mm)

295

345

450

440

530

530

620

735

B (mm)

16

21

37

27

46

35

45

60

C (mm)

22

27

37

30

46

37

46

52

D (mm)

11

15

25

20

29

24

30

40

F(mm)

125

147

183

147

215

183

215

360

J (mm)

111

125

142

125

163

142

163

163

K (mm)

52

57

68

57

79

68

79

79

L(mm)

59

68

74

68

84

74

84

84

Net weight

(kg)

9

11

18

15

28

24

39

70
