Platform Stacker
Product Model :
  • PS2085A
  • PS2120A
  • PS4085A
  • PS4120A
  • PS4150A

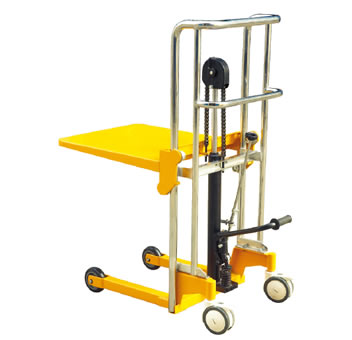

Platform Stacker  PS.A series

* Simple and Easy Operation
Lifting Movement via collapsible foot pedal.
Sensitive lowering through sinking valve.
Hand push drive.
Overload protection via pressure valve.
* Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers.
* Long Service Lift.
Robust construction.
Hard chromium plated frame.
Hardened chromium plated ram.
* Effortless Movement.
Ball bearing rollers.
Polyurethane rollers.
* No-marking castor as standard.
* Conforms to EN 1757-1:2001.

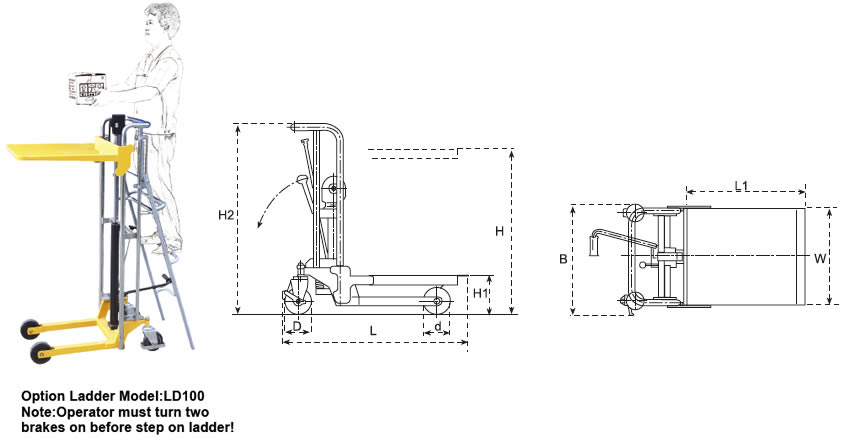

Model

PS2085A

PS2120A

PS4085A

PS4120A

PS4150A

Capacity

(kg)

200

200

400

400

400

Max. platform Height

H (mm)

850

1200

850

1200

1500

Min. Platform Height

H1 (mm)

200

200

200

200

200

Platform Length

L1 (mm)

600

600

650

650

650

Platform Width

W (mm)

500

500

550

550

550

Total Length

L (mm)

940

940

1040

1040

1040

Total Width

B (mm)

560

560

590

590

590

Total Height

H2 (mm)

960

1310

970

1310

1610

Steering Rollers-diameter

D (mm)

Φ125

Φ125

Φ150

Φ150

Φ150

Frame Rollers-diamerter

d (mm)

Φ125

Φ125

Φ150

Φ150

Φ150

Pump Strokes to Max.Height

14

21

30

45

58

Net Weight

(kg)

53

58

72

78

83

Noise-free Castor

O

O

O

O

O

O=Option
