Hand Pallet Truck
Product Model :
  • BST2053
  • BST2068
  • BST2553
  • BST2568
  • BST3054
  • BST3068

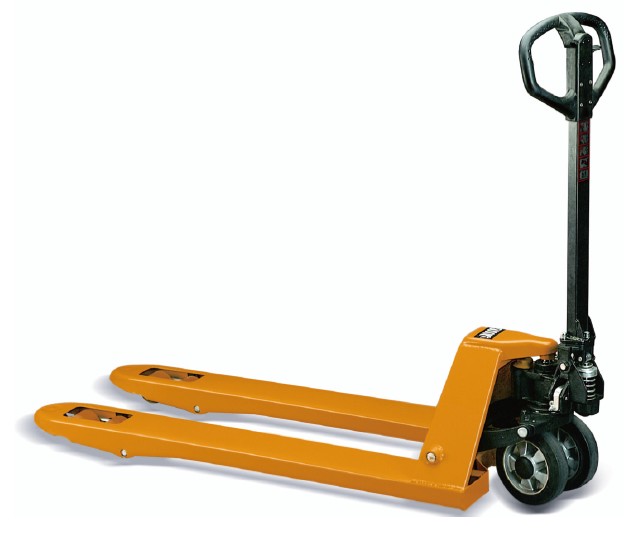

Hand Pallet Truck    BST series


* Quick lift !
Within 2 strokes, pallet is ready to be moved.
Highly efficient achieve maximum lift height in half the time.
Pump automatically switches to normal operation when load exceeds 150kg.
* Three years warranty pump !
Unique double seals design ensures longer life than standard pump.
Quick and easy-change cassette valve system with overload protection.

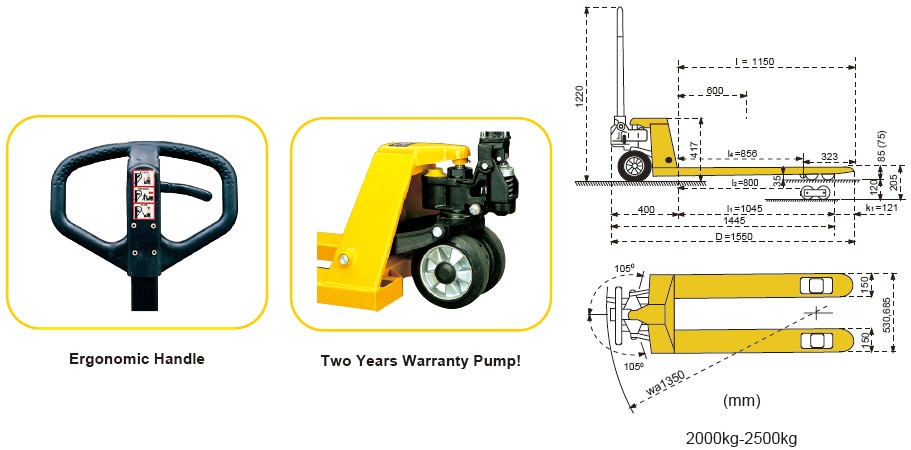

* Ergonomic handle!
Perfectly ergonomic designed handle offers a comfortable trip in all temperatures
and more lifting height per stroke then normal handle.
* New fork design !
Ensures 25% more strength than standard fork. The truck can be used frequently
in toughest conditions.
* New adjustable push rod !
Extremely easy to adjust push rod without turn the truck.
* Self-lubricating bearings !
Ensures long lift and repairable of the truck.
* Additional entry and exit rollers:
Offer easier entry and exit from pallet and protect load wheels as well.
* Conforms to EN1757-2.



 Model



 BST2053

 BST2068

 BST2553

 BST2568

 BST3054

 BST3068

 Capacity

kg

 2000

 2000

 2500

 2500

 3000

 3000

 Max. Fork Height

mm

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 Min. Fork Height

mm

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 Fork Length

mm

 1150

 1220

 1150

 1220

 1150

 1220

 Individual Fork Width

mm

 150

 150

 150

 150

 160

 160

 Width Overall Forks

mm

 530

 685

 530

 685

 540

 680

 Net Weight

kg

 75

 78

 77

 80

 85

 88
