Telescopic Fork Mounted Jibs
Product Model :
|

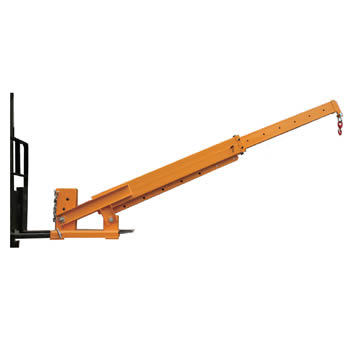

Telescopic Fork Mounted Jibs TLB01
* Capacity: 596kg-3217kg(depends on jib length)
* Jib Position: 690mm-3726mm
* Jib angle is adjustable, max. tilt angle is 26 degree
* Fork Pockets: 180mm x 74mm
|

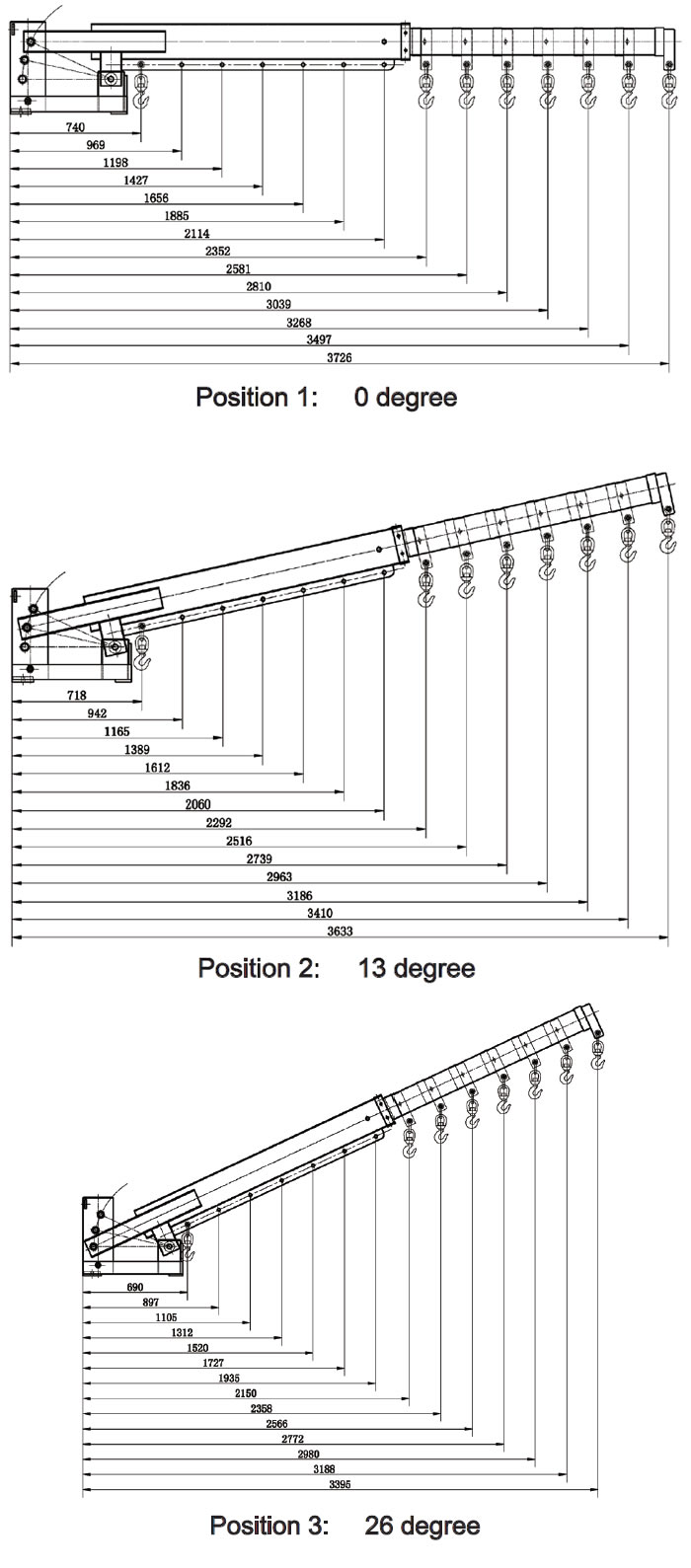

Position 1: 0 degree |
||||||||||||||
|
Length Positions (mm) |
740 |
969 |
1198 |
1427 |
1656 |
1885 |
2114 |
2352 |
2581 |
2810 |
3039 |
3268 |
3497 |
3726 |
|
Capacity (kg) |
3000 |
2291 |
1853 |
1556 |
1341 |
1178 |
1050 |
944 |
860 |
790 |
730 |
679 |
635 |
596 |
|
Position 2: 13 degree |
||||||||||||||
|
Length Positions (mm) |
718 |
942 |
1165 |
1389 |
1612 |
1836 |
2060 |
2292 |
2516 |
2739 |
2963 |
3186 |
3410 |
3633 |
|
Capacity (kg) |
3092 |
2357 |
1906 |
1598 |
1377 |
1209 |
1078 |
969 |
882 |
811 |
749.3 |
697 |
651 |
611 |
|
Position 3: 26 degree |
||||||||||||||
|
Length Positions (mm) |
690 |
897 |
1105 |
1312 |
1520 |
1727 |
1935 |
2150 |
2358 |
2566 |
2772 |
2980 |
3188 |
3395 |
|
Capacity (kg) |
3217 |
2475 |
2009 |
1692 |
1460 |
1285 |
1147 |
1032 |
941 |
865 |
800.8 |
745 |
696 |
654 |
