Work Positioners
Product Model :
  • M100
  • M200
  • E100
  • E150

Work Positioners       M / E series

* Stronger motor, Larger battery 12Ah, Low voltage protection.
A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any
lifting job from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from
pharmaceutical to catering, from packing line to food processing, from warehouse to
office, kitchens, laboratories, retail outlets, etc...

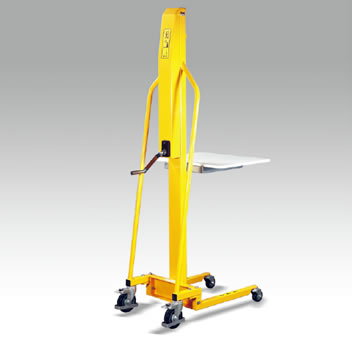

* Manual models: Operated via a manual hand winch.
Auto brake system prevents uncontrolled lowering.
* Electric models: Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries, automatic charger.

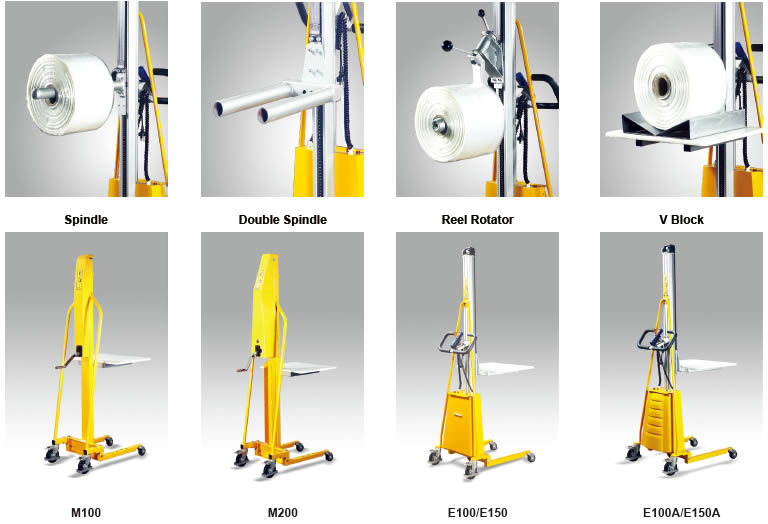

* Quick change attachment options available.
* Conforms to EN1757, CE marked.


 Model

 M100

 M200

 E100

 E150

 Type

 Manual

Manual

 Electric

 Electric

 Capacity

(kg)

 100

 200

 100

 150

 Load Centre

(mm)

 235

 235

 235

 235

 Max. Fork Height

(mm)

 1500

 1500

 1700

 1500

 Min. Fork Height

(mm)

 130

 130

 130

 130

 Platform Size

(mm)

 470x600

 470X600

 470x600

 470X600

 Overall Size

(mm)

 840x600x1830

 870x600x1920

 870x600x1990

 870x600x1790

 Load Wheel

(mm)

 Φ75

 Φ75

 Φ75

 Φ75

 Steering Wheel

(mm)

 Φ125

 Φ125

 Φ125

 Φ125

 Battery, Service Free





 24V/12Ah

 24V/12Ah

 Net Weight

(kg)

 50

 60

 66

 63
