Mobile Weighing Cart
Product Model :
  • ZF20S
  • ZF20L
  • ZFP20S
  • ZFP20L

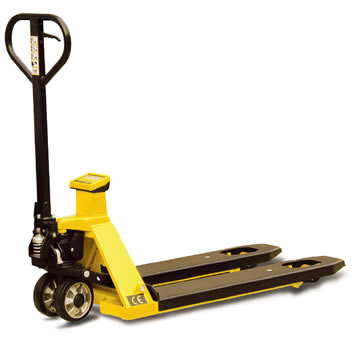

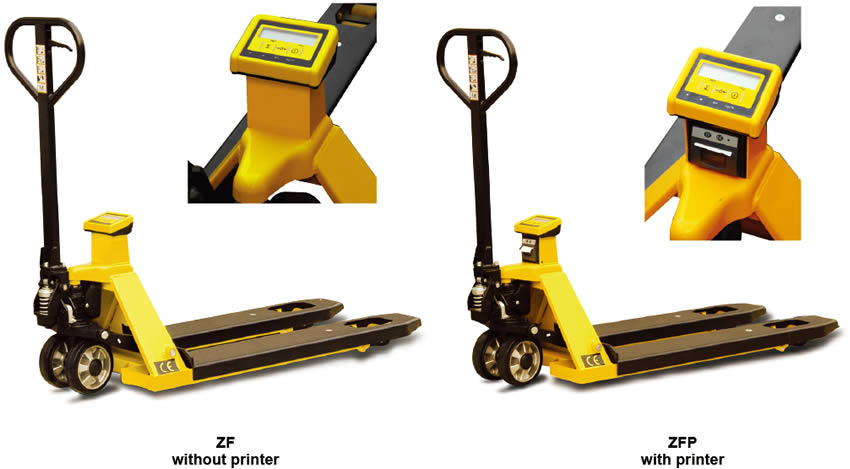

Mobile Weighing Cart  ZF / ZFP series

* Small and compact electronics specially developed for mobile weighing.
Highest level of water and humidity resistance.
Smaller housing is more robust and withstands impacts and vibration better.
One electronic board without connectors means reliability for many years in the hardest applications.
Lower weight of the scale it self ;122kg,means easier handling of the scale.
* More reliability for the hardest applications and environments.
* Lower power consumption makes scale more user friendly. New batteries are only needed one time per year when eighing 10 pallets per day.
* 4 Penlight batteries can be changed without any effort.
* Auto shut off prevents the batteries to be discharged when client forgets to turn the indicator off.
* Summation of weights with sequence number allows verification if the total load has been weighed.

 Model

 ZF20S

 ZF20L

 ZFP20S

 ZFP20L

 Capacity

(kg)

 2000

 2000

 2000

 2000

 Printer



 without

 without

 with

 with

 Max. Fork Height

(mm)

 205

 205

 205

 205

 Min. Fork Height

(mm)

 85

 85

 85

 85

 Fork Length

(mm)

 1150

 1150

 1150

 1150

 Width Overall Forks

(mm)

 555

 690

 555

 690

 Fork Width

(mm)

 180

 180

 180

 180

 Net Weight

(kg)

 117

 120

 118

 121

3” (75mm) lowered fork height available.


Specification
Capacity 2000kg
Graduation 1kg Printer Type :Thermal
Accuracy 0.1% of the weight applied to the scale Functions :Manual paper feed
High contyast display with wegment height of 18 mm. Warning indications by LED :Low battery
Summation and sequence number giving the number of weights totalised :No paper
Auto tare giving the net weight added to or taken from the scale. :Temperature too low
Touch panel with push buttons with metal dome,
tactile feel gives optimal users interface. Paper :Thermal roll
Totally sealed design to the norm IP 65 (NEMA 4), :diameter 40mm
easy to wash down. Print speed
Operating temperature is -10° to +40°C :13 lines per second
According to ROSH directive and conforms to EN1752-2. Operating temperature :0° to 50°c
