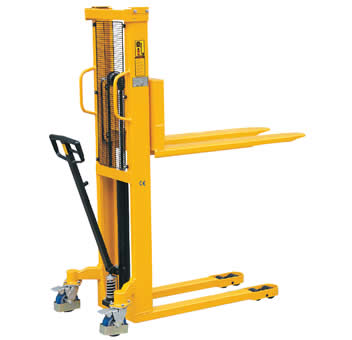

Hand Stacker MT / GT series
Product Model :
  • MT1015
  • MT1029
  • GT1015
  • GT1029

Hand Stacker MT / GT series

Heavy Duty Design

* Unique technology of quick lift system.
* Compact design and strong, accurate steel construction.
  Top quality 1 piece “C” section forks for greatest strength.
* Heavy duty 1 piece “C” section forks for greatest strength.
* Top of stroke bypass valve built in.
*
Conforms to EN1757-1:2001.

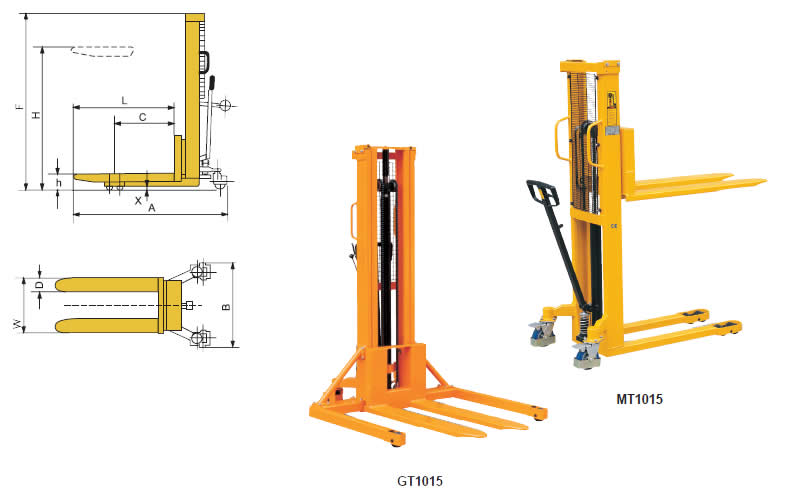

Model

MT1015

MT1029

GT1015

GT1029

Type

Standard

Straddle Leg

Capacity

(kg)

1000

1000

1000

1000

Load Centre

C (mm)

550

550

550

550

Max. Fork Height

H (mm)

1500

2850

1500

2850

Min. Fork Height

h (mm)

90

90

65

65

Fork Length

L (mm)

1150

1150

1150

1150

Single Fork Width

D (mm)

160

160

160

160

Overall Fork Width

W (mm)

540

540

540

540

Leg Width(inside)

W1(mm)

---

---

1270

1270

Load Roller

(mm)

Φ78×80

Φ78×80

Φ78×80

Φ78×80

Steering Wheel

(mm)

Φ150×38

Φ150×38

Φ150×38

Φ150×38

Overall Length

A (mm)

1595

1595

1595

1595

Overall Width

B (mm)

680

680

1395

1395

Overall Height

F (mm)

1960

2000

1960

2000

Net Weight

(kg)

230

370

250

390

Note: Materials and specification are subject to change without notice.
