Manual Chain Hoist HSZ-A
Product Model :
|
Manual Chain Hoist HSZ-A
* Heavy duty and compact design.
* Low effort to lift maximum load.
* Fully forged hooks.
* Extra thick asbestos free friction discs.
* High grade alloy load chain.
* Durable baked enamel paint protection.
* Conform to CE safety standard.
|
Model |
|
HSZ-05A |
HSZ-10A |
HSZ-15A |
HSZ-20A |
HSZ-30A |
HSZ-50A |
HSZ-100A |
HSZ-200A |
|
Capacity |
(kg) |
500 |
1000 |
1500 |
2000 |
3000 |
5000 |
10000 |
20000 |
|
Standard lift |
(m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
|
Running test load |
(Kn) |
7.5 |
15 |
22.5 |
30 |
45 |
75 |
150 |
300 |
|
Effort required to lift rated load |
(N) |
231 |
309 |
320 |
360 |
340 |
414 |
414 |
414x2 |
|
Strands of load chain |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
|
|
Load chain diameter |
(mm) |
6 |
6 |
8 |
8 |
8 |
10 |
10 |
10 |
|

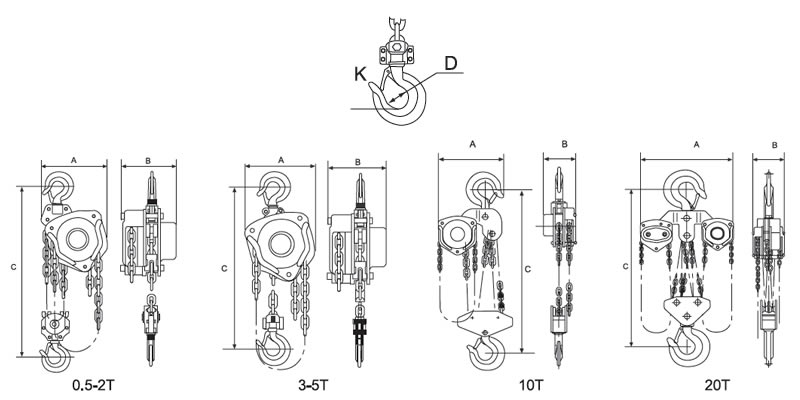

Dimensions |
A (mm) |
131 |
140 |
161 |
161 |
161 |
186 |
207 |
215 |
|
B (mm) |
127 |
158 |
174 |
187 |
199 |
253 |
398 |
650 |
|
|
C (mm) |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
890 |
|
|
D (mm) |
35 |
35.5 |
45 |
42.5 |
50 |
64 |
85 |
110 |
|
|
K (mm) |
30 |
28 |
36 |
33.5 |
40 |
50 |
64 |
85 |
|
|
Net weight |
(kg) |
10 |
12 |
19 |
20 |
27 |
45.5 |
83 |
193 |
|
Packing measurement |
(cm) |
22x15x19.5 |
23x18x19.5 |
28x18x19.5 |
28x21x24 |
32x21x26 |
40x21x31 |
50x41x21 |
64x38x64 |
