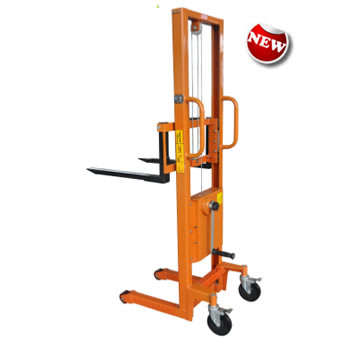

Winch Stacker (Adjustable Leg)
Product Model :
  • LS350
  • LS350K

Winch Stacker (Adjustable Leg)  LS350/LS350K

* Wirerope type alloy chain steel transmission, safe self-locking
* Advanced technical, beautiful appearance

Model

LS350

LS350K

Capacity

kg

350

350

Load Centre

mm

300

400

Max. Fork Height

mm

1500

1500

Min. Fork Height

mm

90

75

Turn Radios

mm

790

Pump Stroke

45

Fork Size (W×L

mm

60×600

80×900

Fork Outside Width

mm

140~620

170~760

Leg Height

mm

80

80

Leg Outside Width

mm

490

860~1270

Front Wheel Diameter

mm

Φ80

Rear Wheel Diameter

mm

Φ150

Net Weight

mm

75

115
