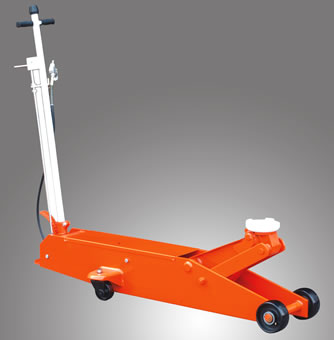

Long Chassis Service Jacks
Product Model :
|
Long Chassis Service Jacks HF series
Professional class
* Welded base and cylinder to assure strength and eliminated leaks.
* Chromed pump piston and ram for added rust resistance.
* Foot pedal brings saddle up to load quickly.
* Meets ANSI/ASME PALD standard & CE/GS standard.
|

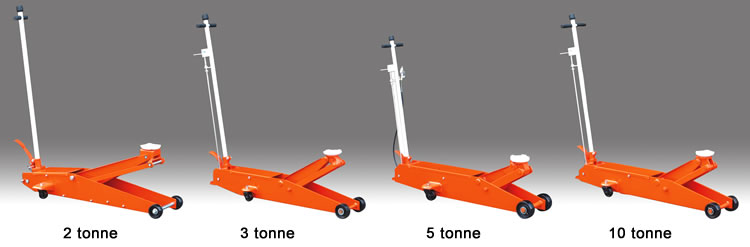

Model |
|
HF20C |
HF30C |
HF50C |
HF50H |
HF100C |
HF100H |
|
Capacity |
(tonne) |
2 |
3 |
5 |
5 |
10 |
10 |
|
Max. Saddle Height |
(mm) |
800 |
600 |
560 |
685 |
560 |
685 |
|
Min. Saddle Height |
(mm) |
140 |
130 |
150 |
150 |
160 |
160 |
|
Net Weight |
(kg) |
58 |
70 |
95 |
95 |
145 |
145 |
