Mechanic Lifter MX series
Product Model :
  • MX0608
  • MX0610

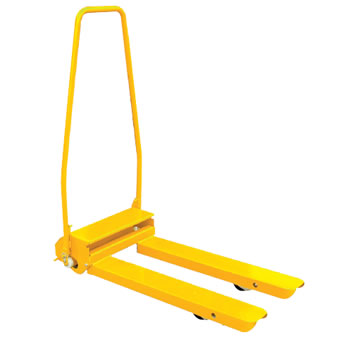

Mechanic Lifter    MX series

* To replace hydraulic pallet truck when under 300kg load.
Pallets are simply lifted by pulling the handle backwards (the leverage principle).
Saves a lot of time as no pumping is required.
* Extremely low weight, about 25kg.
Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.

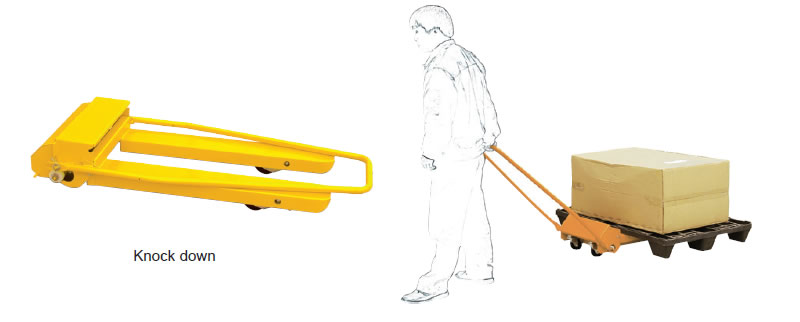

* Foldable. When not in use, it can be hung up on a hook on the wall.
* No Hydraulic pump to repair, no oil can leak out no seals to replace.
* Ideal for grocery stores, all kind of small stores pharmaceutical industry ,drugstores, offices, schools, hospitals etc.


 Model

 MX0608

 MX0610

 Capacity

 (kg)

 300

 300

 Lift Height

 (mm)

 145

 145

 Lowered Height

 (mm)

 85

 85

 Fork Width Outside

 (mm)

 420

 420

 Fork Length

 (mm)

 800

 1100

 Width of Single Fork

 (mm)

 120

 120

 Total Height

 (mm)

 200/1160

 200/1160

 Steer Wheel

 Dia.xWidth (mm)

 Ø80x40

 Ø80x40

 Load Wheel

 Dia.xWidth (mm)

 Ø80x40

 Ø80x40

 Overall Size

 LxW (mm)

 1030x420

 1330x420

 Net Weight

 (kg)

 25

 30
