Aluminum Stacker
Product Model :
  • AWS181
  • AWSL181
  • AWS227
  • AWSL227

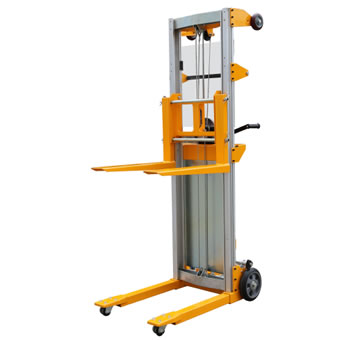

Aluminum Stacker  AWS/AWSL Series

* Disassembling and assembling is easy.
* Can fit into smaller spaces when disassembled.
* Equipped with wheels on the mast also allow it to be used as a trolley.
* Light Alumium mast, easy for handling.
* No any hydraulic problem, beasue it is operated by winch.
* The brake function with special design is obvious.
* Conforms to EN1757-1.

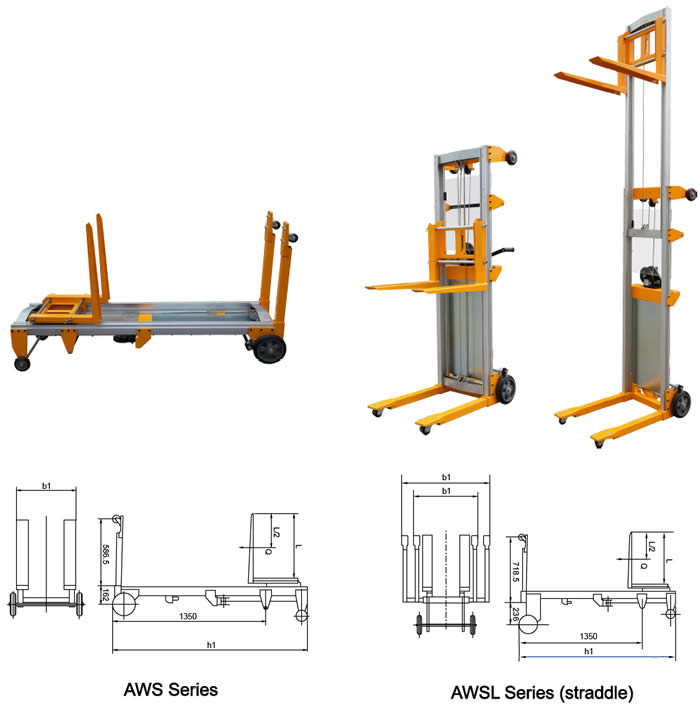

Model



AWS181

AWSL181

AWS227

AWSL227

Capacity

Q(kg)

181

181

227

227

Load Centre

C(mm)

305

305

305

305

Height-maximum Forks Down

h1(mm)

2500

2500

1250

1250

Min. Fork Height

(mm)

90

50

90

50

Fork Length

L(mm)

570

570

570

570

Fork Width

b1(mm)

630

1100

630

1100

Net Weight

(kg)

60

66

51

57
