Wire Rope Winch
Product Model :
|

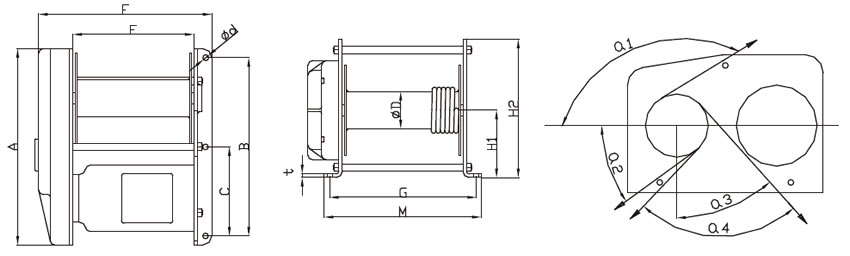

Wire Rope Winch EWH series Model EWH250-15 EWH250-30 EWH500-15 EWH500-30 EWH1100-10 Pulling Force (daN) 250 250 500 500 1100 Lifting Speed (m/min) 15 30 15 30 10 Rope Φ (mm) 5 5 6 6 9 Motor Performance (KW) 0.55 1.1 1.1 2.2 2.2 Useable Rope Length 1st Layer(m) 13.7 13.7 16.4 16.4 11 2st Layer(m) 28.5 28.5 34 34 23.3 3stLayer(m) 45 45 53 53 36.9 4st Layer(m) 62.5 62.5 73.4 73.4 52 Weight Without Rope (kg) 55 59 90 96 98 Dimension A 430 430 515 515 515 B 292 292 480 480 480 C — — 240 240 240 D 80 80 120 120 120 d 13 13 15 15 15 E 380 380 415 415 415 F 265 265 270 270 270 G 322 322 336 336 336 H1 145 145 176 176 176 H2 300 300 365 365 365 M 345 345 370 370 370 t 8 8 10 10 10 a1 149° 149° 150° 150° 150° a2 36° 36° 33° 33° 33° a3 42° 42° 39° 39° 39° a4 86° 86° 89° 89° 89°

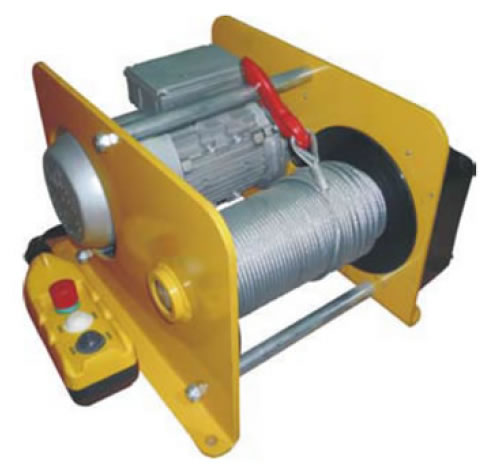

* Wire rope winches series are designed explicitly for performance,effciency and
safety and offer many advantages and options. Their extremely compact,practical
cube desige and universal rope lead-pffs allow individual applications in almost
any position and make them powerful aids for lifting and pulling loads.
* Every winch is factory tested with overload.
* In accordance with DIN 15020,safety regulation VBGB(winch lift and pull equipment)
and the EC machinery directives.
* Compact dimensions due to internal brake motor,standed:Euro-voltage 230/400V.
50Hz.3-phasee,protected to IP54,insulation class F.
* Spur gear transmission with helical first gear ensures smooth.Lubricated by grease
and can,therefore,be used in any position
* Spring pressure disc brake incorporated in the moyor holds the load secure even
in the event of a power failure.
* Plain rope drum standard.
* The rope is secured to the drum In a recess so that the rope can be would onto the
drum in several layers without damages’
* Direct control as standard.
