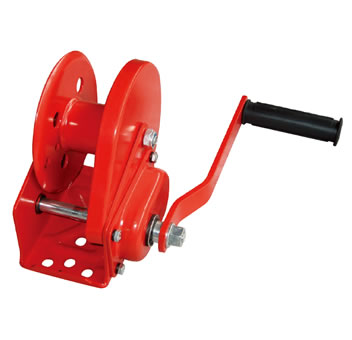

Hand Winch Automatic Brake
Product Model :
|
Hand Winch Automatic Brake AHW series
* Suitable for many lifting and lowering applications
* Self-locking brake winches provide additional safety and control for many lifting and pulling jobs
* The automatic friction brake supplies constant,positive holding action and prevents runaway load
* Brake is fully automatic and the load remains in position anytime when the handle is released
* Hand winch can be supp;ied with belt or steel cable to special order
* Hight quality steel and hardened gears
* Light handle force
* Painting or zinc plating is optional
|
Model |
Capacity |
Test Load |
Gear Ratio |

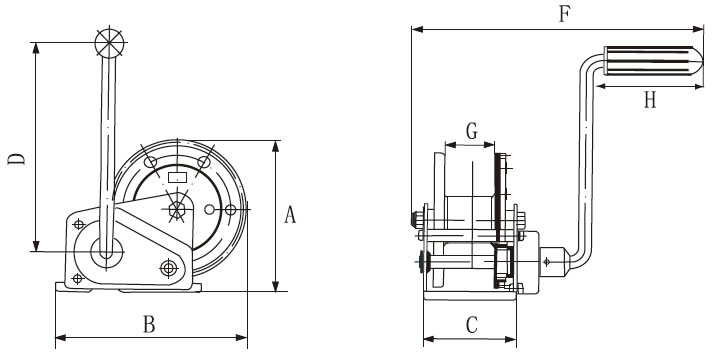

Dimension (mm) |
Net Weight |
||||||||
|
(kg) |
(ibs) |
(KN) |
A |
B |
C |
D |
E |
F |
G |
H |
|||
|
AHW12 |
545 |
1200 |
8 |
4.2:1 |
156 |
184 |
88 |
210 |
27 |
272 |
51 |
109 |
3.7 |
|
AHW18 |
818 |
1800 |
12.13 |
5:1 |
203 |
256 |
107 |
319 |
27 |
283 |
60 |
109 |
7.7 |
|
AHW26 |
1180 |
2600 |
17.64 |
10:1 |
216 |
293 |
127 |
319 |
27 |
305 |
63 |
109 |
10.1 |
