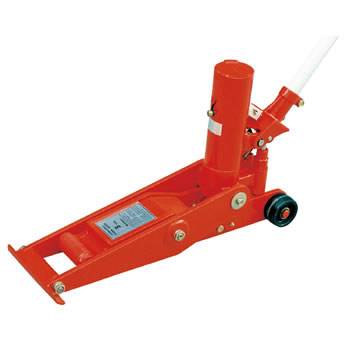

Forklift Jack
Product Model :
  • HFJ-500

Forklift Jack      HFJ-500

* Uniquely built in two lifting speeds.
   Quick lifting and slow lifting which can be automatically switched between with load and without load.
   Quick lifting: 20 times pump strokes.
   Slow lifting: 60 times pump strokes.
* Two alternative lifting positions.
   Low position: capacity 4000kg.
   High position: capacity 5000kg.
* Built in overload valve and bypass valve.
   Guarantees safety and reliable operation.
* Low profile lifting: 65mm.

Model

HFJ-500

Lifting Position

(T)

Low position

High position

Lifting Capacity

4

5

Min. Lifting Height

(mm)

425

724

Max. Lifting Height

(mm)

65

416

Pump Stroke to Max. Height

(mm)

60

60

Overall Dimensions

LxWxH (mm)

690x210x1190

690x210x1190

Net Weight

(kg)

45

45
