Hydraulic Jack
Product Model :
|

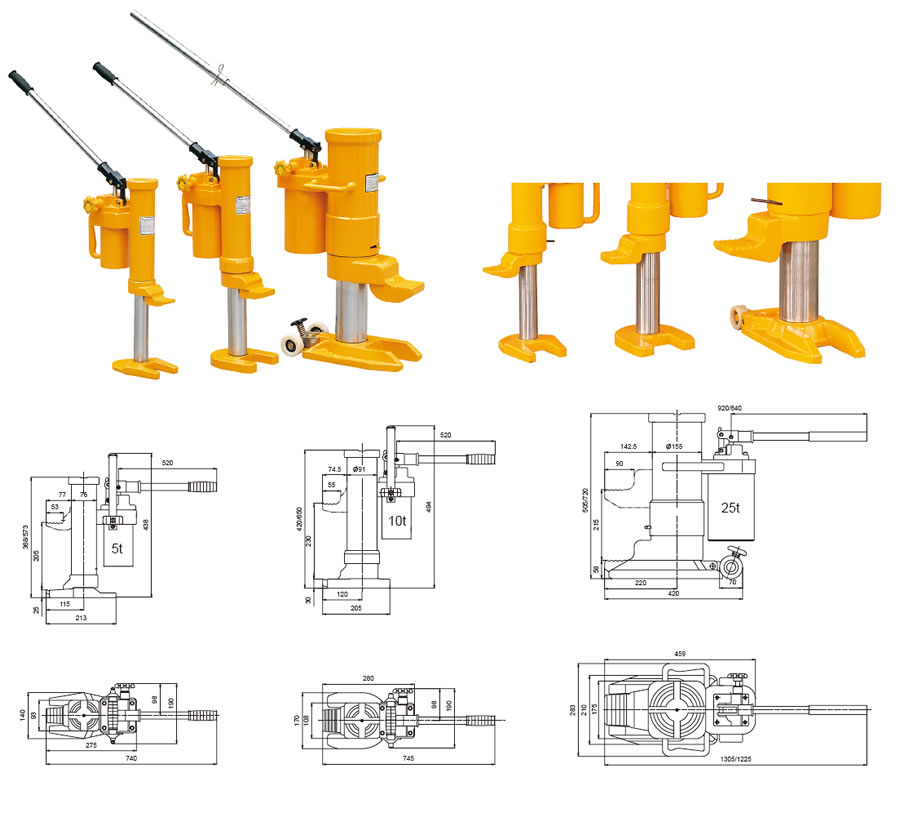

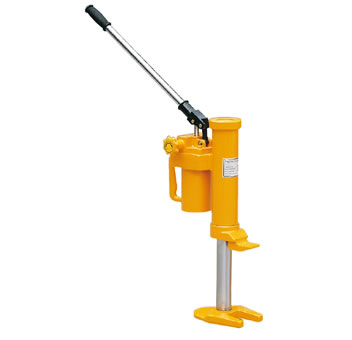

Hydraulic Jack HM series
Hardlift hydraulic jacks for repairs, maintenance and installation of heavy machines
* Compact and stable construction.
* Can be used in any position.
* Housing revolves 360 degrees.
* Lowering speed can be accurately adjusted.
* Protected against overloading.
* Pump lever is removable.
* According to CE and US standard USA ASME/ANSI B30.1.1986
|
Type |
Capacity |
Lifting Range of Foot |
Lifting Range of Head |
Max. Lever Force |
Net Weight |
|
|
(tonne) |
(mm) |
(mm) |
(mm) |
(kg) |
|
HM50 |
5 |
25-230 |
368-573 |
38 |
25 |
|
HM100 |
10 |
30-260 |
420-650 |
40 |
35 |
|
HM250 |
25 |
58-273 |
505-720 |
40 |
102 |
