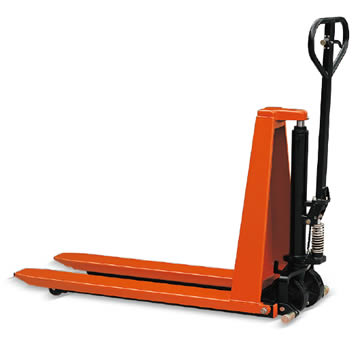

High Lift Scissor Truck
Product Model :
  • NH10S
  • NH10L
  • NHE10S
  • NHE10L

High Lift Scissor Truck NH / NHE series

* Economic version but reliable.
* Single stage cylinder.
No decrease of capacity.
No risk of leakage.
No dangerous dropping of second stage cylinder.
* High quality power unit made in USA.
* Safety: Patented safety system on handle to prevent accidental tough of
the release handle thus causing sudden sliding down of the fork, you can
screw the release handle tight in slow or quick lifting position.
Quick lift as standard.
* 1.5 tonne capacity is available.
* Conforms to EN1757-4.

 Model

 NH10S

 NH10L

 NHE10S

 NHE10L

 Capacity

(kg)

 1000

 1000

 1000

 1000

 Max. Fork Height

H (mm)

 800

 800

 800

 800

 Min. Fork Height

h (mm)

 85 ± 2

 85 ± 2

 85 ± 2

 85 ± 2

 Fork Overall Width

B (mm)

 540

 680

 540

 680

 Fork Length

L (mm)

 1150

 1150

 1150

 1150

 Front Load Roller

(mm)

 Ø75x75

 Ø75x75

 Ø75x75

 Ø75x75

 Steering Wheel

(mm)

 Ø180x50

 Ø180x50

 Ø180x50

 Ø180x50

 Pump Strokes to Max. Height without load /with rated load

 11/19

 11/19





 Lifting Time, without/with rated load

(sec)





 11/19

 11/19

 Battery

(Ah/V)





 66/12

 66/12

 Battery Charger

(A/V)





 10/12

 10/12

 Net Weight (without battery)

(kg)

 110

 115

 141

 146
