Hand Pallet Truck
Product Model :
  • CA20S
  • CA20L
  • CA25S
  • CA25L

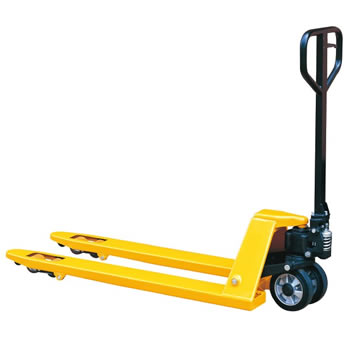

Hand Pallet Truck   CA series

* Reliable hydraulic pump:
German made seal kits afford two years warranty hydraulic pump.
Unique technology on this pump, descending speed is controllable that irrespective of the weight of the load.
* Bushings in key points:
This feature offer a long span life of truck, and it is really a reparable truck.
* Easy pallet entry and exit:
Fork tip and tapered mounting bracket design for entry roller, effort protection for the roller itself and the load wheel,
it is easier for entry and exit from pallet.
* Durable frame by heavy duty design:
lt is heavy design with high quality steel plate and sturdy continuous welds throughout.
* Conforms to EN1757-2.

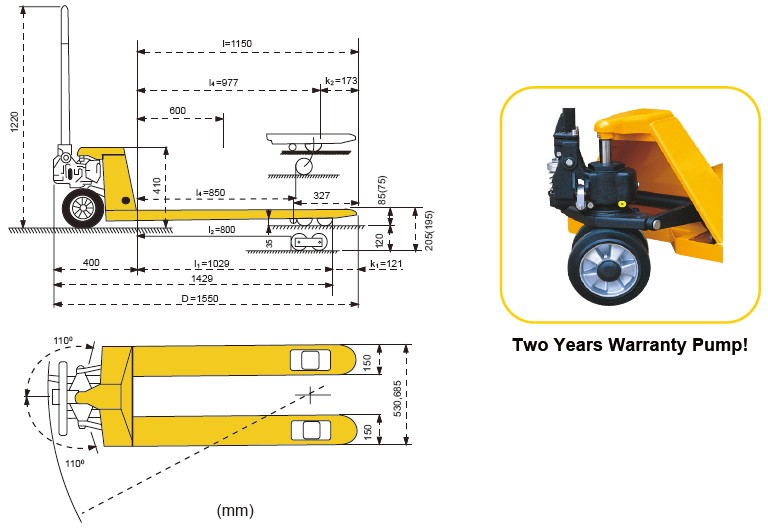

 Model      CA20S    CA20L    CA25S    CA25L
 Capacity    (kg)    2000    2000    2500    2500
 Max. Fork Height    (mm)  205 (or 195)    205 (or 195)    205 (or 195)    205 (or 195)
 Min. Fork Height    (mm)   85 (or 75)    85 (or 75)    85 (or 75)    85 (or 75)
 Fork Length    (mm)  1150    1220    1150    1220
 Width Overall Forks    (mm)   530    685    530    685
 Net Weight    (kg)    70    73    72    75
 Special fork size available.
