Steel Jack
Product Model :
  • HVS-1.5
  • HVS-3
  • HVS-5
  • HVS-10
  • HVS-20
  • HKB-1.5
  • HKB-3
  • HK

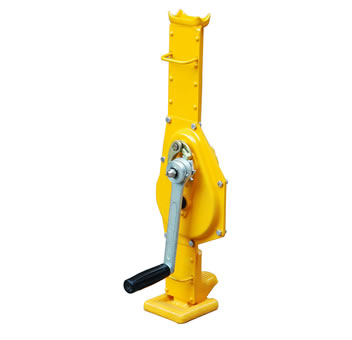

Steel Jack       HVS series

* HardLift steel jacks HVS is developed in accordance with the latest safety regulations. With milled rack, geared wheels and tempered parts of driving gear.
* In accordance with DIN 7355(type HVS).
* Suitable for lifting loads of any type.
* With lifting body.
* Safety crank with folding handle.
* Lifting either with fixed toe or on clawed head.
* All construction components standardized.
* Low expenditure of force through optimal ratio.



Model

Safe Working Load

Height of Load

Lifting Height

Height of Claw in Lowest Position

Net Weight

(kg)

(mm)

(mm)

(mm)

(kg)

HVS-1.5

1500

725

350

70

12

HVS-3

3000

725

350

75

20

HVS-5

5000

725

300

70

24

HVS-10

10000

800

300

90

42

HVS-20

20000

800

340

95

60

HKB-1.5

1500

570

300

70

11

HKB-3

3000

570

300

75

18

HKB-5

5000

600

300

70

22

HKB-10

10000

650

300

80

38
