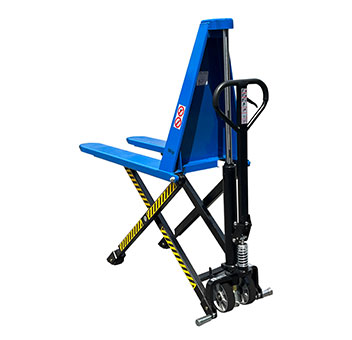

High Lift Scissor Truck
Product Model :

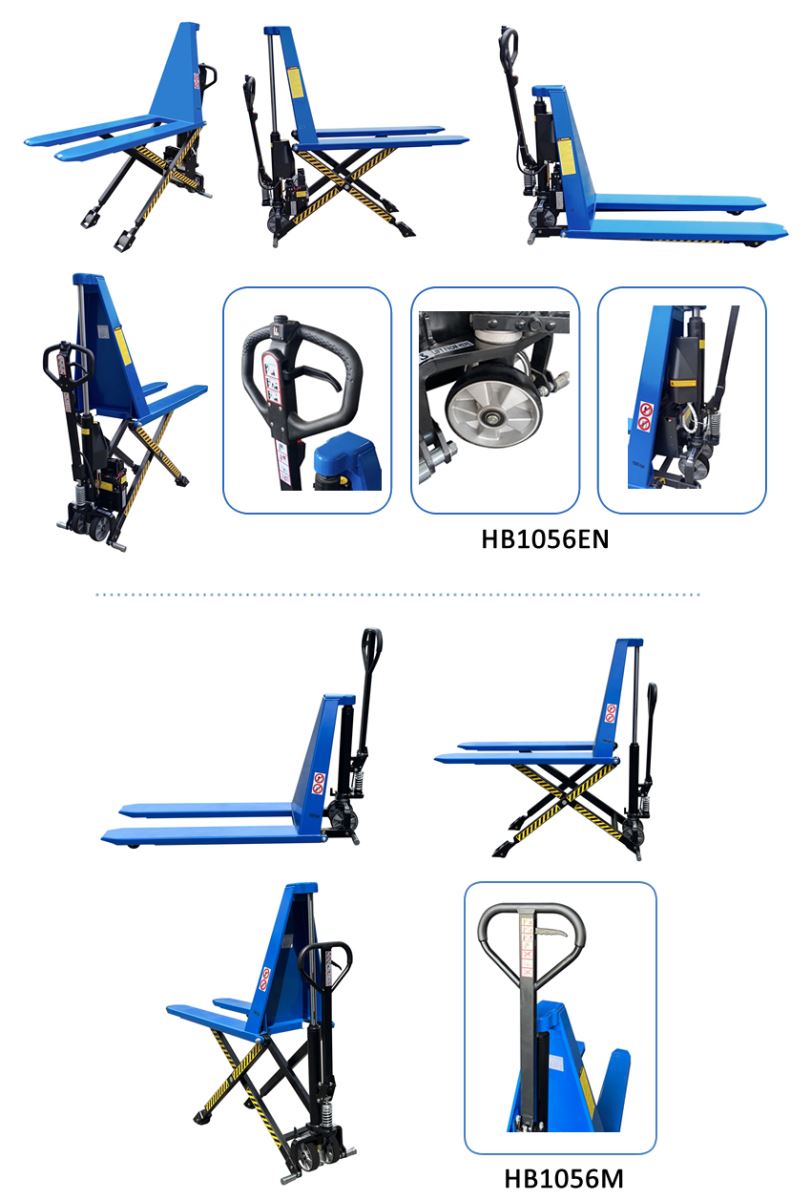

  • HB1056M
  • HB1068M
  • HB1056E
  • HB1068E
  • HB1056EN
  • HB1068EN

High Lift Scissor Truck   HB series

* World class quality and performance.
* Single stage cylinder.
No decrease of capacity.
No risk of leakage.
No dangerous dropping of second stage cylinder.
* Ergonomic design handle.
Simple and comfortable operation.
* Improved safety.
Automatic activation of self-adjusting stabilizers when lifting loads higher than
400mm for maximum stability and optimum braking.

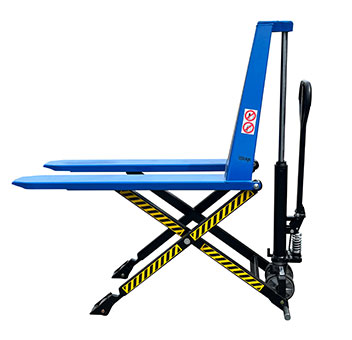

* HB1056M/1068M-Manual.
Quick-lift function doubles the lifting speed when lifting loads less than 250kg.

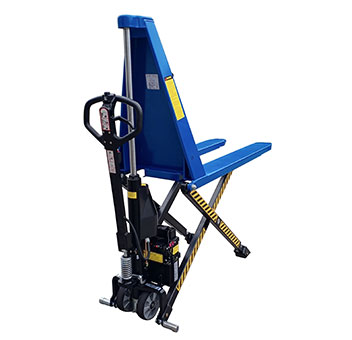

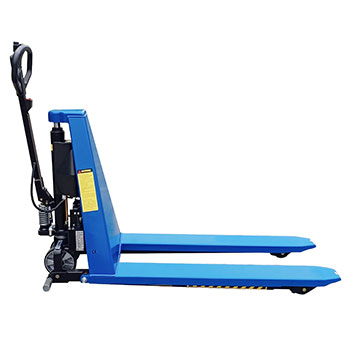

* HB1056E/EN, HB1068E/EN-EIectric.
* Easy handling
The compact structure with the battery and power unit positioned between body
and lifting cylinder resulting in a low centre of gravity and excellent maneuverability.
* Flexibility
Can work manually when the battery has been charged.
* Charger
10A/12V separate, or 6A/12V Built-in.
* Reliable
HPI power unit made in France.
* Conforms to EN1757-4 and EN1175.



 Model



 HB1056M

 HB1068M

 HB1056E

 HB1068E

 HB1056EN

 HB1068EN

 Type



 Manual

 Electric

 Electric (built in charger)

 Capacity

 (kg)

 1000

 1000

 1000

 1000

 1000

 1000

 Max. Fork Height

H (mm)

 800

 800

 800

 800

 800

 800

 Min. Fork Height

h (mm)

 85 ± 2

 85 ± 2

 85 ± 2

 85 ± 2

 85 ± 2

 85 ± 2

 Fork Width

B (mm)

 560

 680

 560

 680

 560

 680

 Fork Length

L (mm)

 1190

 1190

 1190

 1190

 1190

 1190

 Ground Clearance

 s (mm)

 20

 20

 20

 20

 20

 20

 Front Load Roller

(mm)

 Ø75x75

 Ø75x75

 Ø75x75

 Ø75x75

 Ø75x75

 Ø75x75

 Steering Wheel

 (mm)

 Ø180x50

 Ø180x50

 Ø180x50

 Ø180x50

 Ø180x50

 Ø180x50

 Pump Strokes to Max. Height
without / with Rated Load




 28/62

 28/62









 Lifting Time, without / with Rated Load

 (sec)





 11/19

 11/19

 11/19

 11/19

 Battery

(Ah/V)





 70/12

 70/12

 70/12

 70/12

 Battery Charger







 Separate 10A/12V

 Built-in 6A/12V

 Net Weight (without Battery)

(kg)

 128

 133

 158

 163

 159

 164
