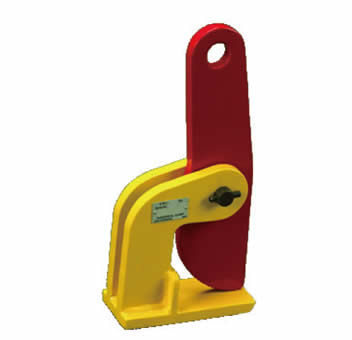

Horizontal Plate Clamp
Product Model :
|
Horizontal Plate Clamp PLV / PLVS series

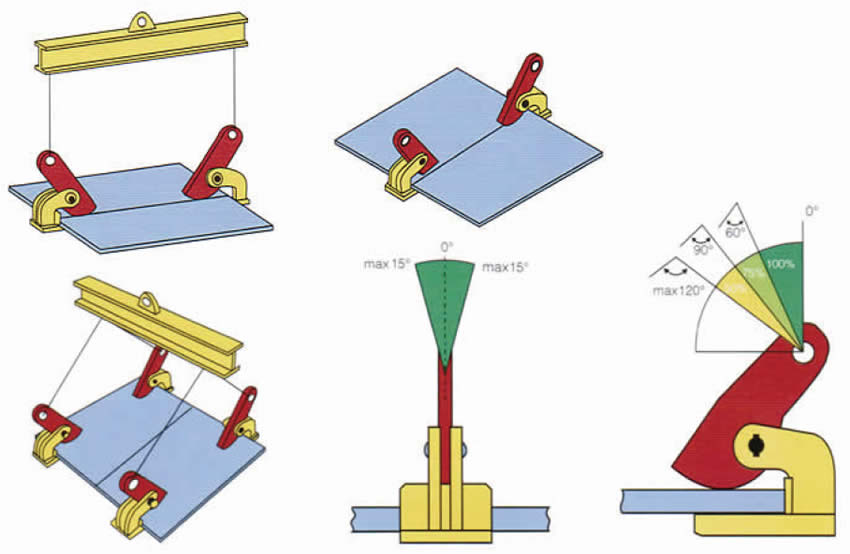

* For horizontal lifting and transporting of steel plates.
* The compact shape and relative light own weight with a high lifting capacity.
* The PLVS/PLV lifting clamps must always be used in pairs (or multiples thereof).
* THK has an enlarged jaw opening.
|
Model |
WLL |
Jaw Opening |
Weight |
|
PLVS0.5 |
0.5 |
0-35 |
2.4 |
|
PLVS1 |
1.0 |
0-60 |
6 |
|
PLVS1.5 |
1.5 |
0-60 |
6.5 |
|
PLVS2 |
2.0 |
0-60 |
7.5 |
|
PLVS3 |
3.0 |
0-60 |
10 |
|
PLVS4 |
4.0 |
0-60 |
11.5 |
|
PLVS5 |
5.0 |
0-60 |
15.5 |
|
PLVS10 |
10.0 |
0-60 |
23 |
|
PLV1 |
1.0 |
0-100 |
7 |
|
PLV1.5 |
1.5 |
0-100 |
7.5 |
|
PLV2 |
2.0 |
0-100 |
9.5 |
|
PLV3 |
3.0 |
0-100 |
12 |
|
PLV4 |
4.0 |
0-100 |
14.5 |
|
PLV5 |
5.0 |
0-100 |
20 |
|
PLV10 |
10.0 |
0-100 |
22 |
