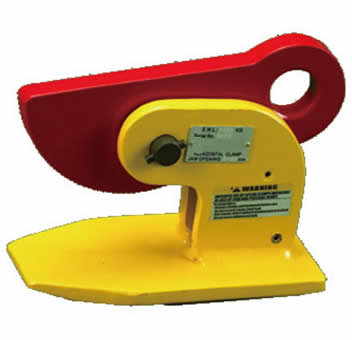

Horizontal Plate Clamp
Product Model :
|
Horizontal Plate Clamp PLU series
* Suitable for lifting and transport of steel plates construction and profiled bar in horizontal position.
* Manufactured from high quality carbon steel.
* Avoid snatch or shock loading.

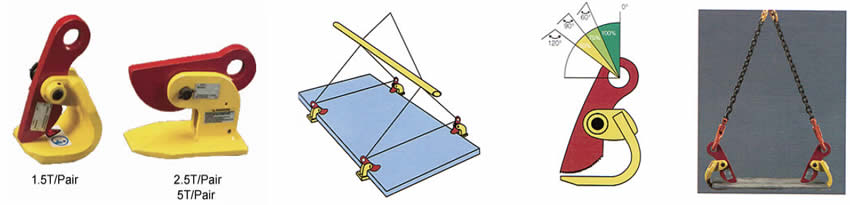

* Must be used in pairs for horizontal lifting.
* PLU1.5 has spring close, PLU3 and PLU5 has spring open.
* Conforms to AS4991-2004.
| Model | WLL (tonnes)per pair |
Jaw Opening (mm) |
Weight (Kg) |
| PLU1.5 | 1.5 | 0-50 | 4.3 |
| PLU3 | 3.0 | 0-50 | 6 |
| PLU5 | 5.0 | 0-60 | 12 |
