Horizontal Plate Clamp
Product Model :
  • PLS1
  • PLS2
  • PLS3

Horizontal Plate Clamp      PLS series

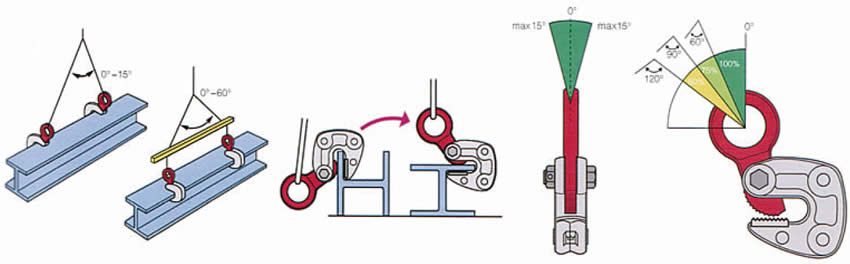

* Clamp for the horizlntal lifting of "H", "I", "T", "L" shaped structured steel.
* From a mechanics point of view, these clamps have ideal designs, which are compact, lightweight, easy to use.
* The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durability.

Model

WLL
(tonnes)

Jaw Opening
(mm)

Weight
(Kg)

PLS1

1.0

1-133

2

PLS2

2.0

3-222

4.5

PLS3

3.0

12-35

8.9
