Double Steel Plate Clamp
Product Model :
  • PLP1
  • PLP2
  • PLP3.2
  • PLP5
  • PLP7

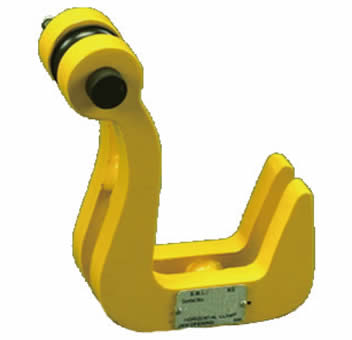

Double Steel Plate Clamp           PLP series

* Clamp for the horizontal lifting of "H", "I", "T", "L" shaped structured steel and plate steel.
* Manufactured form high quality carbon steel.
* Avoid snatch or shock loading.
* The roller at the head of the hook will not damage the sling rope.

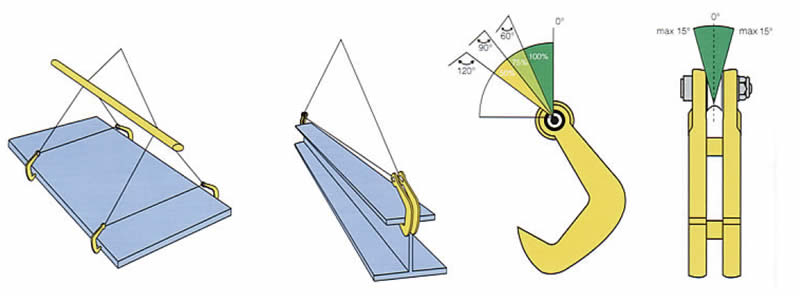

* The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
   In lifting opreations the clamps can be used in pairs or multiples.
* The sharp hook point is effective when inserting into a small clearance.

Model

WLL
(tonnes)per pair

Jaw Opening
(mm)

Weight
(Kg)

PLP1

1.0

0-40

2

PLP2

2.0

0-50

3.5

PLP3.2

3.2

0-60

6

PLP5

5.0

0-70

14.5

PLP7

7.0

0-90

22
