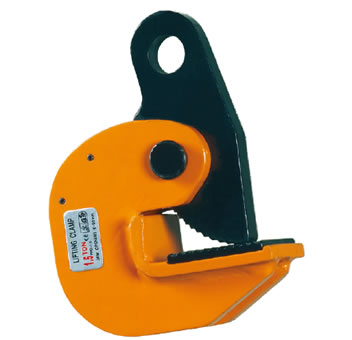

Horizontal Plate Lifting Clamp
Product Model :
|
Horizontal Plate Lifting Clamp PLB series
* Designed for the safe handling of plate in horizontal direction.
* Hardened steel jaws for positive grip and locking mechanism.
* Made of drop-forged tested.
* 150% overload factory tested.
* Usually 2 or 4 pcs work together.
* Conforms to EC Council Directive 98/37/EC Machinery.
American Standard ANSI/ASME B30.20s.
|
Model |
Capacity |
Jaw Opening |
Net Weight |
|
|
(T/Pair) |
(mm) |
(kg) |
|
PLB0.8 |
0.8 |
0-25 |
2.5 |
|
PLB1 |
1 |
0-30 |
3.5 |
|
PLB1.6 |
1.6 |
0-30 |
4 |
|
PLB2 |
2 |
0-40 |
5 |
|
PLB3.2 |
3.2 |
0-45 |
6 |
|
PLB4 |
4 |
0-50 |
6.5 |
|
PLB5 |
5 |
0-55 |
7.5 |
|
PLB6 |
6 |
0-65 |
10.5 |
|
PLB6(B) |
6 |
0-130 |
22 |
|
PLB8 |
8 |
0-100 |
- |
|
PLB10 |
10 |
0-125 |
- |
