Plain Trolley and Geared Trolley
Product Model :
  • PT05
  • PT10
  • PT20
  • PT30
  • PT50
  • PT100

Plain Trolley and Geared Trolley       PT series

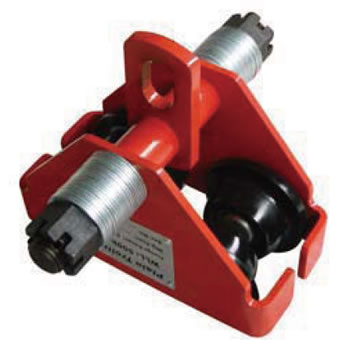

Plain Trolley

* Universal tread flanged track wheels equipped with shielded ball bearings.
* Spacer washers can be shifted inside or outside for easy adjustment to wide range of beams.
* Manufactured according to prEN 13157:2003, machinery directive 98/37/EC.


Model

Capacity

Min. Radus of Curve

I-beam Recommended(mm)

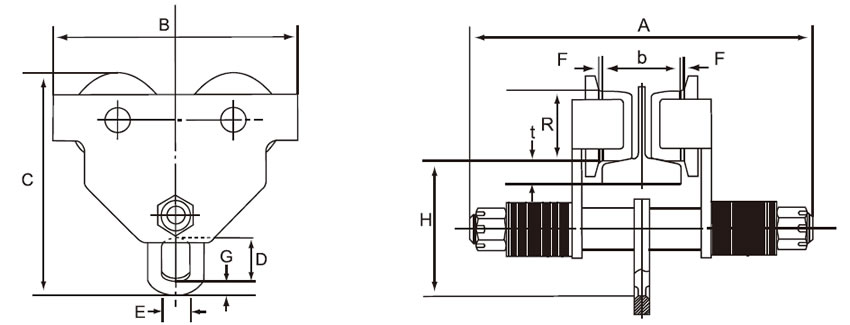

Dimensions

Net Weight

b

t min

(mm)

(kg)

(m)

Size A

Size B

Size A

Size B

A

B

C

D

E

G

H

R

F

(kg)

PT05

500

0.9

64-152

64-300

25

40

242

212

200

36

24

15

110

60

3

7

PT10

1000

1.0

64-203

64-300

25

40

266

255

230

48

30.5

15

125

75

14

PT20

2000

1.1

88-203

88-300

25

40

306

302

275

58

36

20

151

89

22

PT30

3000

1.3

102-203

102-300

25

40

360

345

339

74.5

45

25

185

112

30

PT50

5000

1.4

114-203

114-300

25

40

372

378

393

97

60

34

220

125

55

PT100

10000

1.7

125-203

125-300

40

40

403

445

500

114

80

52

280

150

93
