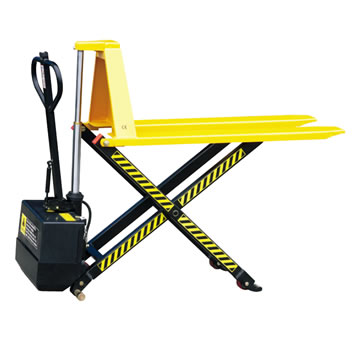

High Lift Scissor Truck
Product Model :
|
* Economic version but reliable.
* High quality power unit made in USA.
* Top quality power unit made in Europe.
* Safety: Patented safety system on handle to prevent accidental tough of
the release handle thus causing sudden sliding down of the fork, you can
screw the release handle tight in slow or quick lifting position.
* Conforms to EN1757-4.
|
Model |
|
JLA5210 |
JLA6810 |
JEA5210 |
JEA6810 |
|
Type |
Manual |
Electric |
|||
|
Capacity |
(kg) |
1000 |
1000 |
1000 |
1000 |
|
Max. Fork Height |
(mm) |
800 |
800 |
800 |
800 |
|
Min. Fork Height |
(mm) |
85 ± 2 |
85 ± 2 |
85 ± 2 |
85 ± 2 |
|

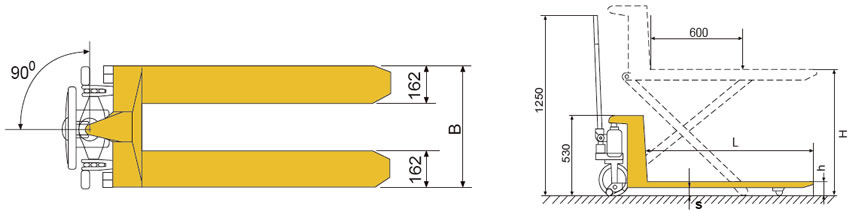

Fork Width |
B (mm) |
520 |
680 |
520 |
680 |
|
Fork Length |
L (mm) |
1140 |
1140 |
1140 |
1140 |
|
Ground Clearance |
s (mm) |
19.5 |
19.5 |
19.5 |
19.5 |
|
Front Load Roller |
(mm) |
Ø75x50 |
Ø75x50 |
Ø75x50 |
Ø75x50 |
|
Steering Wheel |
(mm) |
Ø150x40 |
Ø150x40 |
Ø150x40 |
Ø150x40 |
|
Pump Strokes to Max. Height (Without load / With rated load) |
28/67 |
28/67 |
— |
— |
|
|
Lifting Time (Without load / With rated load) |
— |
— |
12/30 |
12/30 |
|
|
Battery |
(Ah/V) |
— |
— |
66/12 |
66/12 |
|
Battery Charger |
(A/V) |
— |
— |
10/12 |
10/12 |
|
Net Weight (without battery) |
(kg) |
95 |
102 |
130 |
137 |
