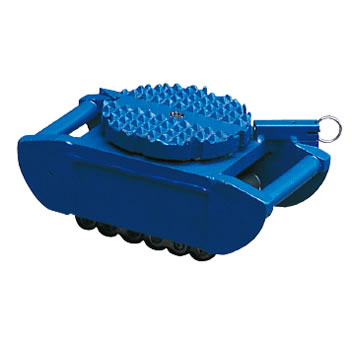

Individual Roller
Product Model :
|

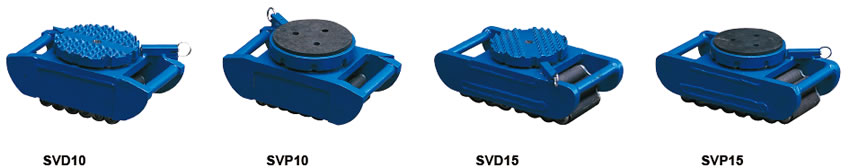

Individual Roller SVP / SVD series
* SVD-Diamond steel top, SVP-Rubber pad top.
|
Model |
Capacity |
Size of roller |
Top style |
Number of roller |
Dimensions |
Net Weight |
|
(tonne) |
Φ×L (mm) |
(pcs) |
L×W×H (mm) |
(kg) |
||
|
SVP3.75 |
3.75 |
24×84 |
Swivel locking |
14 |
267×146×127 |
15 |
|
SVP10 |
10 |
24×84 |
14 |
267×146×133 |
17 |
|
|
SVP15 |
15 |
30×102 |
16 |
324×165×130 |
21 |
|
|
SVD3.75 |
3.75 |
24×84 |
Swivel locking |
14 |
267×146×121 |
15 |
|
SVD10 |
10 |
24×84 |
14 |
167×146×133 |
16 |
|
|
SVD15 |
15 |
30×102 |
16 |
324×165×130 |
21 |
