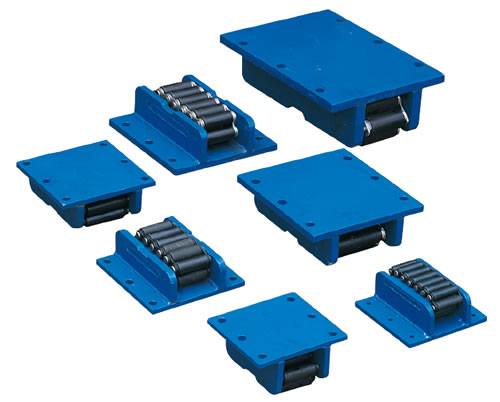

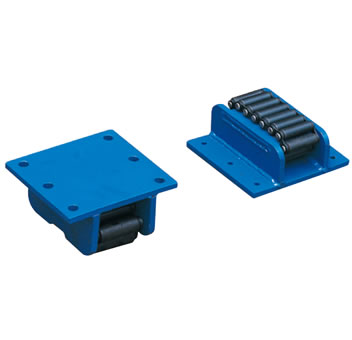

Roller Skates
Product Model :
|
Roller Skates VA series
* Ideal for linear, repetitive movement, or use as a built-in component in equipment,
* Rollers are built for long lift and a wide range.
* Rollers have a fixed hole pattern for bolt-mounting.
* Rollers can be used right side up, inverted, or on their side.
|
Model |
Capacity |
Size of Roller |
Number of Roller |
Dimension |
Net Weight |
|
(tonne) |
Φ×L (mm) |
(pcs) |
L×W×H (mm) |
(kg) |
|
|
VA0.75 |
0.75 |
17×51 |
16 |
165×178×79 |
5 |
|
VA2.5 |
2.5 |
24×62 |
12 |
165×178×92 |
10 |
|
VA5 |
5 |
24×62 |
13 |
203×203×79 |
10 |
|
VA8 |
8 |
24×84 |
13 |
203×203×79 |
11 |
|
VA15 |
15 |
30×70 |
14 |
270×254×98 |
21 |
|
VA20 |
20 |
30×102 |
14 |
270×254×98 |
22 |
|
VA50 |
50 |
41×89 |
20 |
417×305×140 |
67 |
