High Lift Scissor Truck
Product Model :

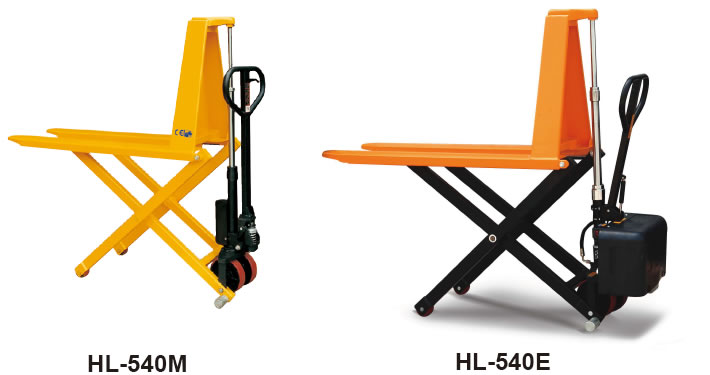

  • HL-540M
  • HL-680M
  • HL-540E
  • HL-680E

High Lift Scissor Truck HL series

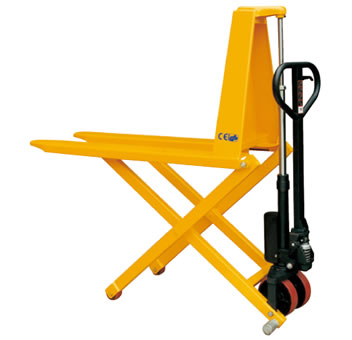

* Manual
Capacity 1000kg (2200lbs).
Larger piston offer real 1000kg full capacity.
* Conforms to EN 1757-4.

* Electric
Capacity 1000kg (2200lbs).
High quality hydraulic motor made in Italy.
* Conforms to EN 1757-4 and EN 1175.

 Model

 HL-540M

 HL-680M

 HL-540E

 HL-680E

 Type

 Manual

 Electric

 Capacity

 (kg)

 1000 (2200lbs)

 1000 (2200lbs)

 1000 (2200lbs)

 1000 (2200lbs)

 Max. Fork Height

 (mm)

 800 (31.5 inch)

 800 (31.5 inch)

 800 (31.5 inch)

 800 (31.5 inch)

 Min. Fork Height

 (mm)

 90 (3.5 inch)

 90 (3.5 inch)

 90 (3.5 inch)

 90 (3.5 inch)

 Fork Overall Width

 (mm)

 540 (21.3 inch)

 680 (26.8 inch)

 540 (21.3 inch)

 680 (26.8 inch)

 Fork Length

 (mm)

 1165 (45.3 inch)

 1165 (45.3 inch)

 1165 (45.3 inch)

 1165 (45.3 inch)

 Battery

 (Ah/V)





 54/12

 54/12

 Battery Charger

 (A/V)





 8/12

 8/12

 Net Weight (without battery)

 (kg)

 110 (242lbs)

 125 (275lbs)

 150 (330lbs)

 165 (363lbs)

Rollers: Nylon, Polyurethane. Wheels: Nylon, Polyurethane, Rubber.

Materials and specification are subject to change without notice.
