Drum Grab
Product Model :
  • DG10
  • DG20
  • DG30
  • DG40
  • DG45
  • DG50

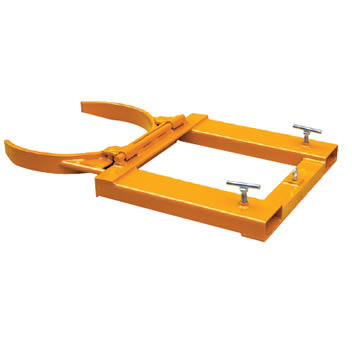

Drum Grab       DG series

* Fork Mounted Automatically!
* Easily and quickly lift drums without hydraulic or electric connections. Simply slip onto forks an tighten hand screws. Heavy duty steel construction. Lifts, transports and deposits drums without leaving the driving position. Firm pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

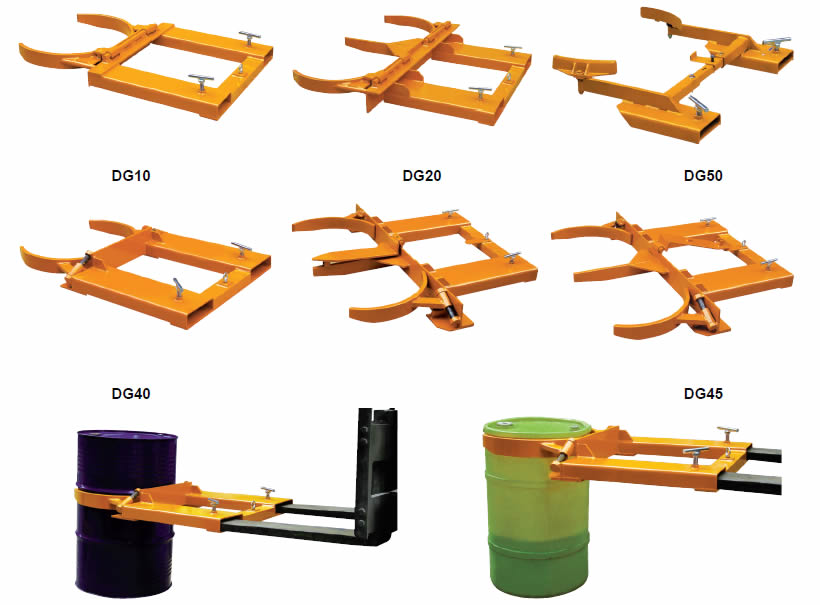

Model

Drum Type

Capacity

Drum

Fork Pockets

Net Weight





(lbs / per drum)

(Gallon)

(inch0

(lbs)

DG10

Single Steel Drum

1500

55

51/2×2

121

DG20

Double Steel Drum

1500

55

7×21/4

198

DG30

Adjustable, Single Steel Drum

1500

30 or 55

51/2×2

115

DG40

Adjustable, Steel / Plastic Drum

1500

30 or 55

7×21/4

125

DG45

Adjustable, Double Steel Drum

1500

30 or 55

7×21/4

194

DG50

Adjustable, Single Poly Drum

1500

30 or 55

53/8×11/2

41
