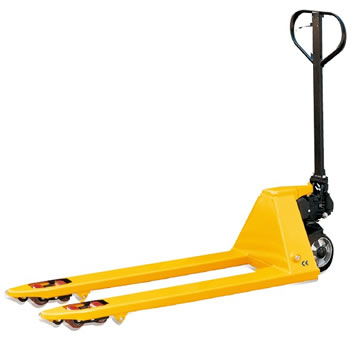

Hand Pallet Truck
Product Model :
|
Hand Pallet Truck HP series
* A built in overload valve and totally sealed hydraulic pump.
* German seal kit offers long span life of pump for 2 years warranty.
* Heavy duty and reinforced forks for greatest strength and durability.
* Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.
* Maintenance free oiless bushings at key points offer you less operating force and longer span life of pallet truck.
Conforms to EN1757-2.
|
Model |
|
HP20S |
HP20L |
HP25S |
HP25L |
HP30S |
HP30L |
|
Capacity |
(kg) |
2000 |
2000 |
2500 |
2500 |
3000 |
3000 |
|
Max. Fork Height |
(mm) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
205 (or 195) |
|
Min. Fork Height |
(mm) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
85 (or 75) |
|
Fork Length |
(mm) |
1150 |
1220 |
1150 |
1220 |
1150 |
1220 |
|
Width Overall Forks |
(mm) |
540 |
680 |
540 |
680 |
540 |
680 |
|
Individual Fork Width |
(mm) |
160 |
160 |
160 |
160 |
160 |
160 |
|
Load Roller |
Dia.xWidth (mm) |
Φ 80×70 (or Φ70×70) Nylon, Polyurethane |
|||||
|
Steering Wheel |
Dia.xWidth (mm) |
Φ200×50 (or Φ180×50) Nylon, Polyurethane, Rubber |
|||||
|
Net Weight |
(kg) |
78 |
82 |
80 |
84 |
85 |
89 |
|
Quick Lift (6 pump strokes) |
|
HPQ20S |
HPQ20L |
HPQ25S |
HPQ25L |
HPQ30S |
HPQ30L |
|
With Hand Brake |
|
HPH20S |
HPH20L |
HPH25S |
HPH25L |
HPH30S |
HPH30L |
|
With Deadman Brake |
|
HPD20S |
HPD20L |
HPD25S |
HPD25L |
HPD30S |
HPD30L |
|
With Foot Brake |
|
HPJ20S |
HPJ20L |
HPJ25S |
HPJ25L |
HPJ30S |
HPJ30L |
